Cheap and Fine Single-disc Rotary Brush for Solar Panel Cleaning

Availability:
Quantity:

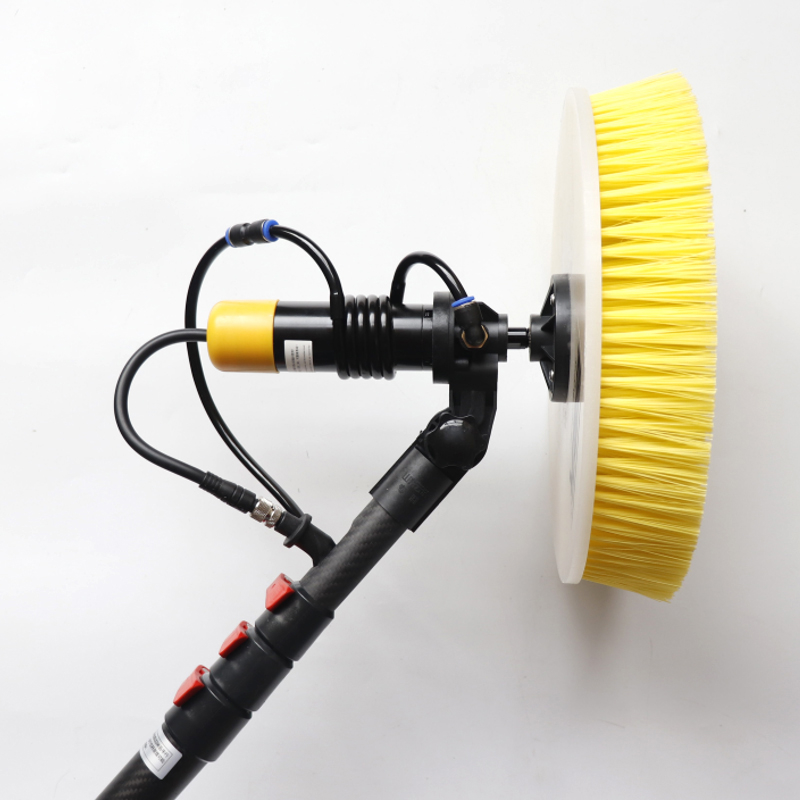

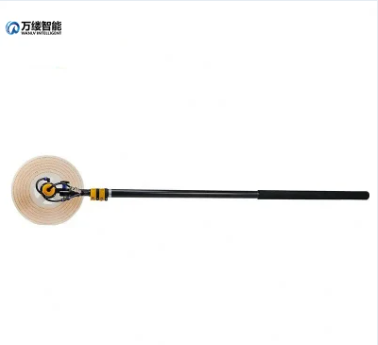

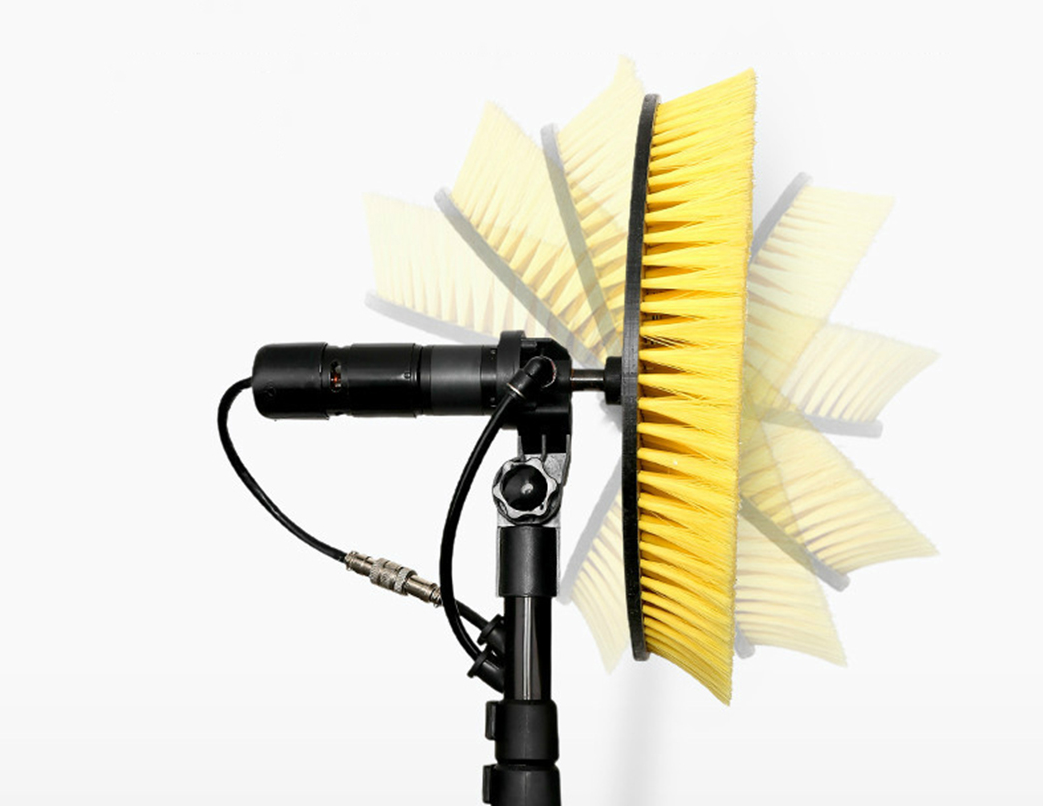

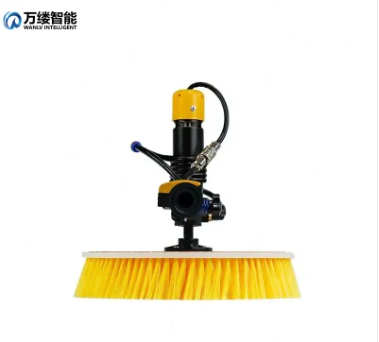

Cheap and Fine Single-disc Rotary Brush for Solar Panel Cleaning


Product  Description


Model: WLS-3-1-3WL/5WL/7WL


Power supply: Main electrical power / Lithium Battery Supply

Length of the telescopic pole: 3.5m/5.5m/7.5m

Material of pole: Aluminum alloy

Material of brush: New material nylon yarn


Brief Profile

The diameter of the Disc:  32 cm

The Motor speed: 350rpm

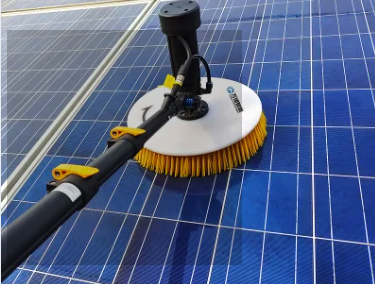

Application Scenario:  Projects on ground,

 Rooftops  PV

 Floating PV

Centralized photovoltaic power station

Distributed solar farm

Mountain photovoltaic

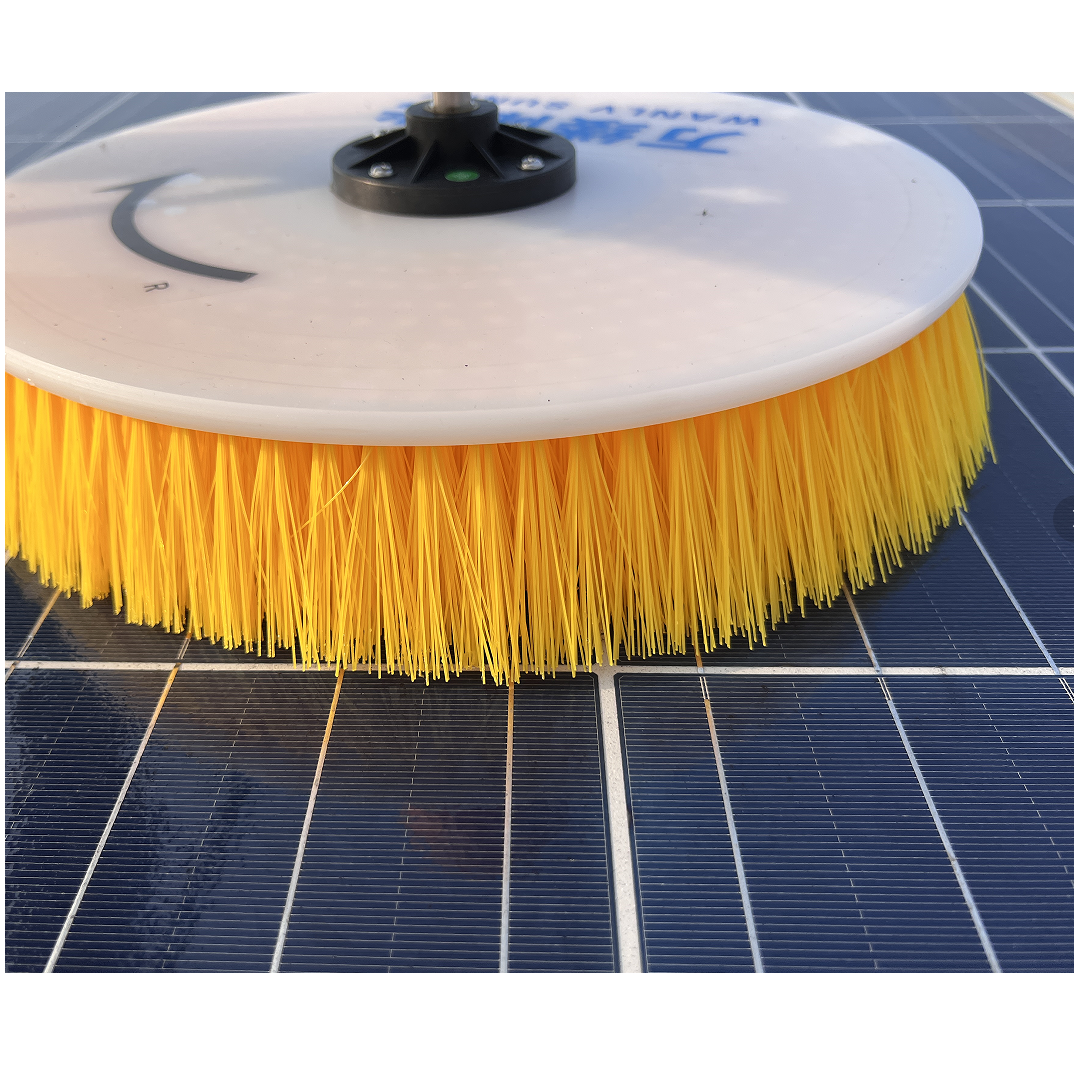

Brief introduction of the material of brush

1. Roller brush material


The material of the roller brush is directly related to its service life and cleaning effect. Common roller brush materials include nylon, PP, PBT, etc.


1. Nylon material: The roller brush made of nylon has a smooth surface, high hardness, and a relatively long service life. It is suitable for cleaning dirt and dust on the surface of photovoltaic panels. At the same time, the roller brush made of nylon has strong corrosion resistance and longer service life.


2. PP material: Compared with nylon material, PP material has relatively lower hardness and is mainly suitable for cleaning relatively fine dirt and dust.


3. PBT material: PBT material has moderate hardness, strong adaptability, easy to clean, and less likely to deform after collision.


Generally speaking, roller brushes made of nylon have high hardness, good corrosion resistance, and long service life, and are suitable for routine cleaning work; while roller brushes made of PP have relatively low hardness and are suitable for fine cleaning. PBT material has moderate hardness, good anti-corrosion properties, and a wide range of uses. Therefore, when choosing a roller brush, you should choose a roller brush of appropriate material according to the actual scene.








Configuration:

Tool accessories box: 1pc

Power converter: 24V

Switch control box : 1pc

Water and electricity integration pipe: 1pc with 16m length




Mains version

Lithium version

Dual-use version

Motor speed

rpm

350

350

350

Motor power

watt

150

150

150

Motor voltage

volt

24

24

24

Telescopic rod wall thickness

mm

1.0

1.0

1.0

Telescopic rod length/no. of

m/knot

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

Maximum diameter of telescopic tube

mm

40

40

40

Wire/water pipe length

m

16/20

8/20

16/20

Power supply

220V main power

Lithium battery pack

220V main power/ Lithium battery pack

Lithium battery voltage/capacity

Volts/Ah

24/15

24/15

Lithium battery current

Amp

10

10

Usage time/battery charge

Hour

6-7/ 10-12

6-7/ 10-12

Bristle material

New material nylon yarn

New material nylon yarn

New material nylon yarn

Telescopic pole material

Aluminum alloy

Aluminum alloy

Aluminum alloy

Cleaning width

cm

32

32

32
