WLS-73S
WANLV SUNNY

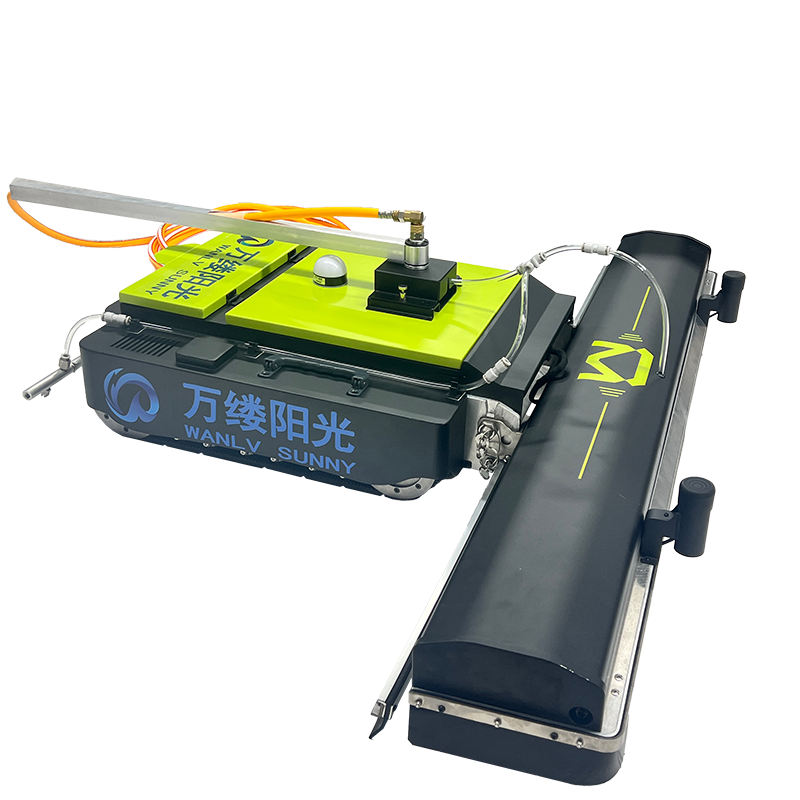

The WLS-73S Solar Panel Cleaning Robot by Wuxi Wanlv Intelligent Technology Co., Ltd. (WANLV SUNNY) is a cutting-edge solution tailored for modern photovoltaic (PV) plants. Engineered for efficiency, it ensures optimal solar panel cleanliness, enhancing energy production while offering lightweight, user-friendly operation.
Lightweight Design, Panel Protection
Weighs only 34kg, verified by third-party testing for no damage during long-term use.
Quick assembly and disassembly make transportation and handling effortless.
Exceptional Cleaning Performance
Cleans up to 1,000㎡ per hour, supporting up to 1.5MW/day for a two-person team.
Equipped with a high-speed 300 RPM roller brush and supports neutral detergent for floating dust and light-to-medium oil stains.
Smart and Efficient Operation
Remote control functionality allows effortless cleaning in diverse environments.
Operates effectively with a 4-hour battery life, and spare batteries ensure continuous performance.
Flexible Applications
Ideal for flat-ground PV stations, cement roofs, and color steel tile photovoltaic power plants.
Suitable for inclinations of 0-15° with added support for high-pressure water pumps.
Battery Type: Ternary lithium, 25.2V 25.6Ah
Cleaning Efficiency: Up to 1,000㎡/hour
Brush Speed: 300 RPM
Water Consumption: 4L/min
Product Weight: 34kg
Dimensions: 840 × 1223 × 300 mm
Operating Conditions:
Temperature: 5-50°C
Protection Level: IP65
Maximized Energy Output: Clean panels increase solar power generation efficiency.
Eco-Friendly Cleaning: Uses neutral detergents and optimized water consumption.
Convenient and Safe: Designed for various PV installations, ensuring adaptability and reliability.
For a high-performance and durable cleaning solution, WANLV SUNNY's WLS-73S is the ultimate choice. Learn more on our website: www.wanlvsunny.com
The WLS-73S Solar Panel Cleaning Robot by Wuxi Wanlv Intelligent Technology Co., Ltd. (WANLV SUNNY) is a cutting-edge solution tailored for modern photovoltaic (PV) plants. Engineered for efficiency, it ensures optimal solar panel cleanliness, enhancing energy production while offering lightweight, user-friendly operation.
Lightweight Design, Panel Protection
Weighs only 34kg, verified by third-party testing for no damage during long-term use.
Quick assembly and disassembly make transportation and handling effortless.
Exceptional Cleaning Performance
Cleans up to 1,000㎡ per hour, supporting up to 1.5MW/day for a two-person team.
Equipped with a high-speed 300 RPM roller brush and supports neutral detergent for floating dust and light-to-medium oil stains.
Smart and Efficient Operation
Remote control functionality allows effortless cleaning in diverse environments.
Operates effectively with a 4-hour battery life, and spare batteries ensure continuous performance.
Flexible Applications
Ideal for flat-ground PV stations, cement roofs, and color steel tile photovoltaic power plants.
Suitable for inclinations of 0-15° with added support for high-pressure water pumps.
Battery Type: Ternary lithium, 25.2V 25.6Ah
Cleaning Efficiency: Up to 1,000㎡/hour
Brush Speed: 300 RPM
Water Consumption: 4L/min
Product Weight: 34kg
Dimensions: 840 × 1223 × 300 mm
Operating Conditions:
Temperature: 5-50°C
Protection Level: IP65
Maximized Energy Output: Clean panels increase solar power generation efficiency.
Eco-Friendly Cleaning: Uses neutral detergents and optimized water consumption.
Convenient and Safe: Designed for various PV installations, ensuring adaptability and reliability.
For a high-performance and durable cleaning solution, WANLV SUNNY's WLS-73S is the ultimate choice. Learn more on our website: www.wanlvsunny.com
Net product weight | 34kg | |
Product size | 840*1223*300mm | |
Remote control distance | 150m | |
Rolling brush length | 1200mm | |
Water yield | 4L/min (Max. 8.5L/min) | |
Brush rolling speed | 330r/min | |
Battery parameter | 25.2V 25.6AH | |
Battery type | Ternary lithium battery | |
Equipment power supply | Battery life on full charge | 4h Quick replacement of spare batteries |
Charging time | 5h battery out of charge for European and Japanese standards | |
Cleaning capacity | Cleaning efficiency | 1000㎡/h daily cleaning capacity of about 1.5MW |
Cleaning pollutant | Float ash, dust accumulation, with neutral detergent clean light, moderate oil | |
Operating condition | Array inclination | 0-15 ° |
Type of power station | Flat ground photovoltaic power station | |
Cement roof, color steel tile photovoltaic power station | ||
Component type | Conventional aluminum bezel assembly | |
Working environment | Ambient temperature | 5-30°C Component temperature 5-50°C |
Class of protection | IP65 | |
Operating period | Recommended morning, evening, cloudy light rain weather | |
Handling performance | Remote control operation |
