Automatic Solar Panels Cleaning Robot with Remote Control And Lithium Battery Pack

Availability:
Quantity:

Product name:


Automatic Solar Panels Cleaning Robot with Remote control and Lithium Battery Pack


Product Introduction

Model: WLS-72Z



Brief  Introduction

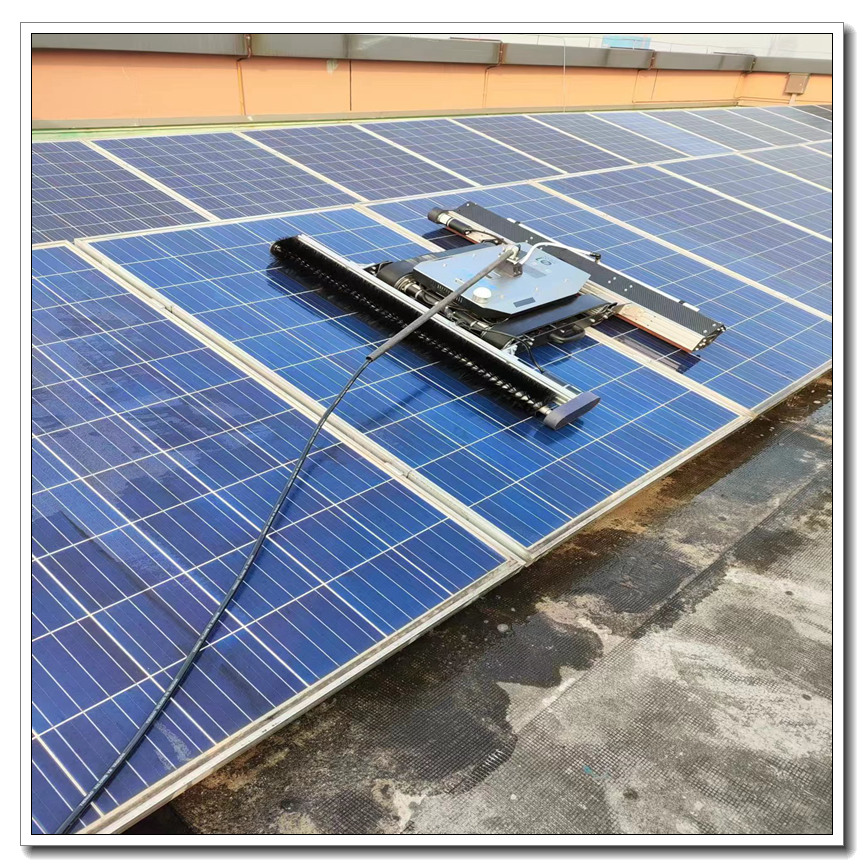

The Automatic Solar Panels cleaning robot is designed to work in difficult environments that are inaccessible to humans or too high for telescopic poles.


These robots usually have intelligent control systems and autonomous navigation, which allow them to clean effectively in a range of photovoltaic panel configurations and environmental circumstances. Powered by a reliable lithium battery, It is usually equipped with an efficient cleaning brush and water spray system that can automatically cruise and clean dust, debris and dirt on the surface of the solar panel.


The use of photovoltaic cleaning robots can improve the power generation efficiency of solar panels and extend their service life, while also reducing the cost and work risks of manual cleaning.

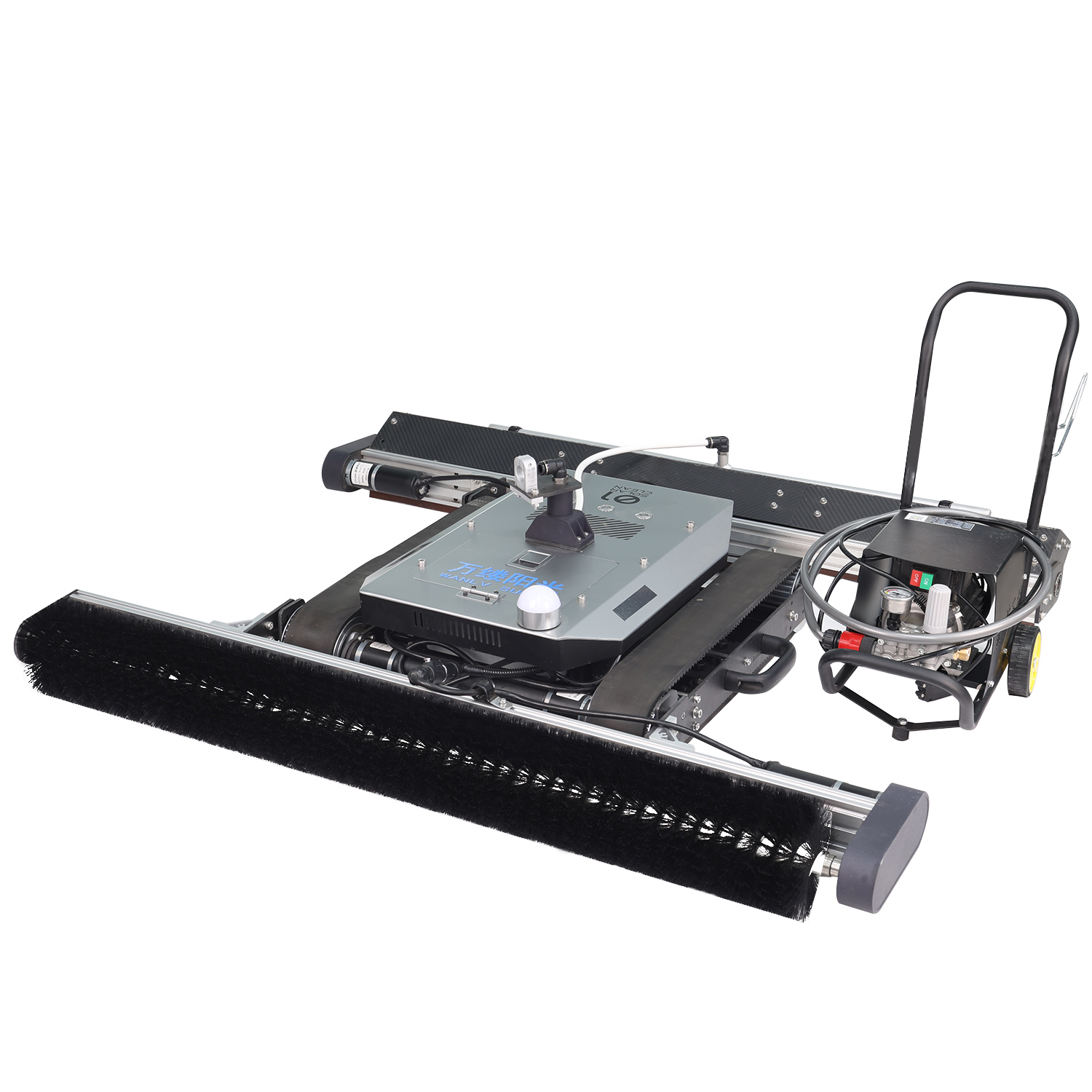

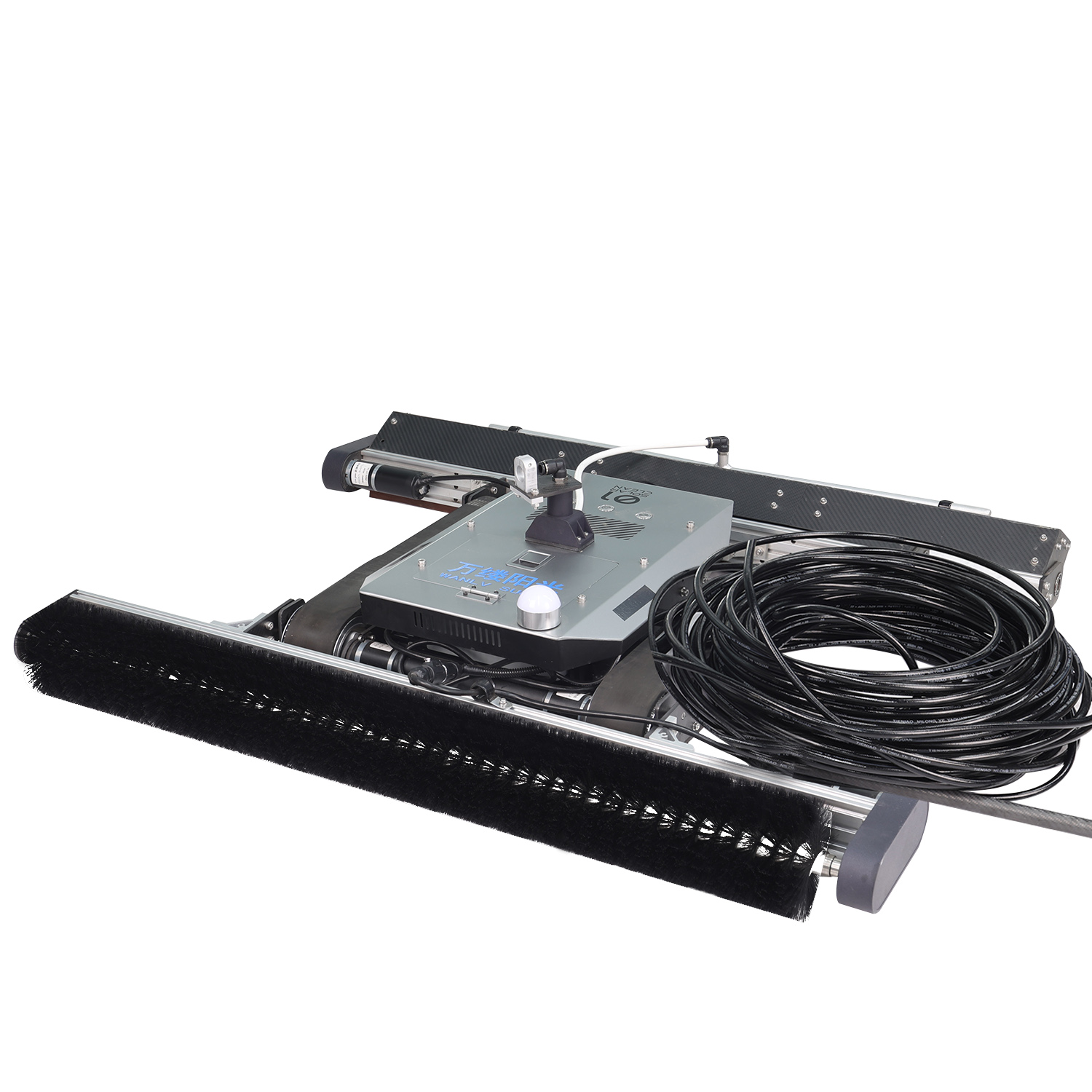

Water supply: Our robot has two water supply methods. The first is to directly connect the faucet to provide water, and the other is to install a water tank and connect an extended water pipe and pressurized water supply through a high-pressure water pump to break through the limitations of water sources.

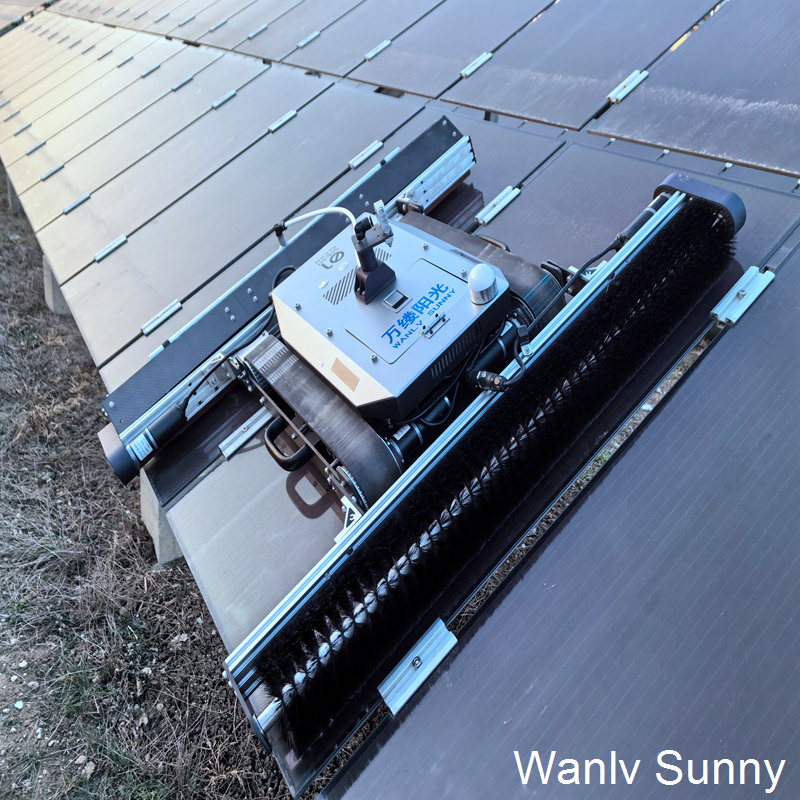

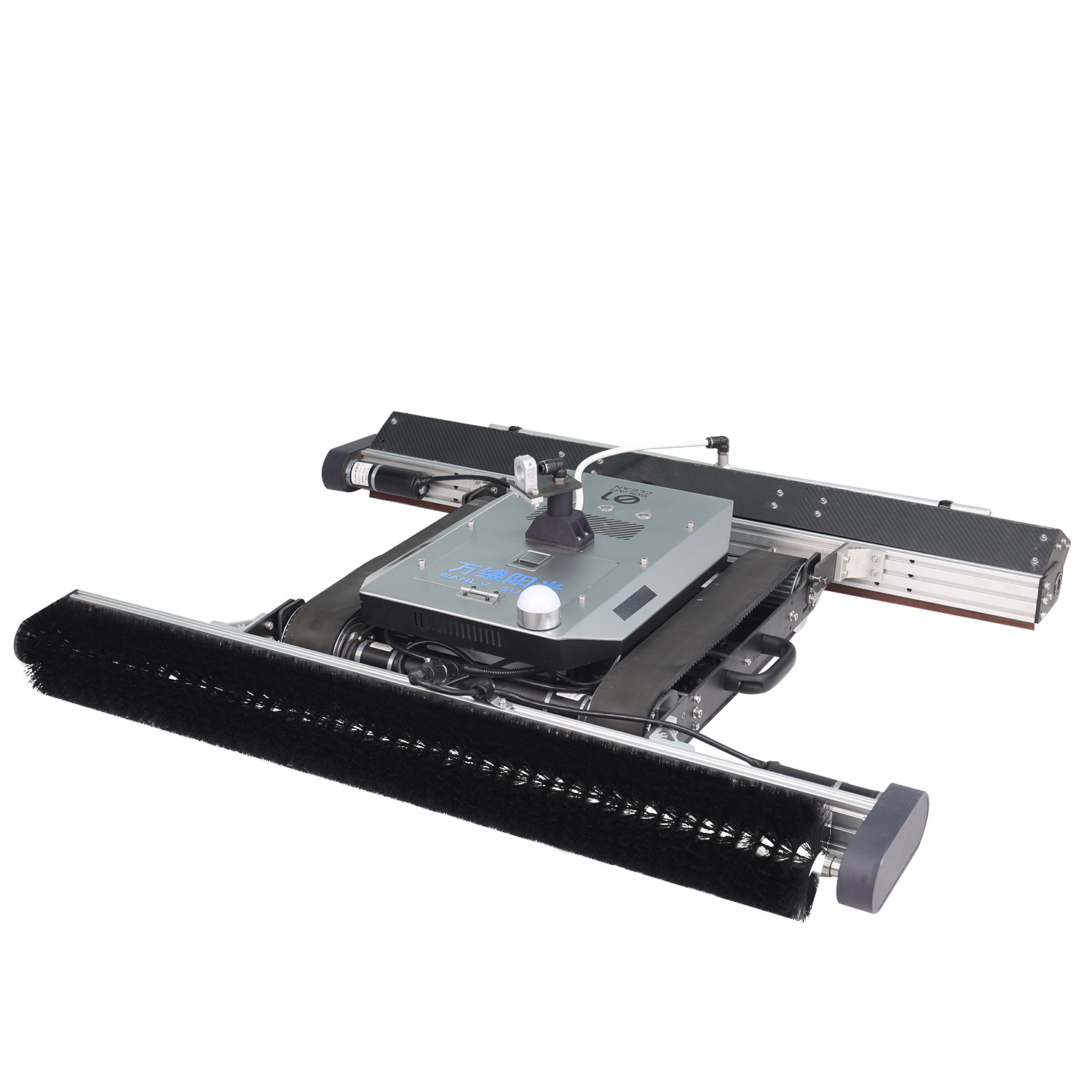

There are two brush heads installed at the front and rear ends of the subject machine. In addition to inheriting the excellent performance of the single-head roller brush robot, the new robot has an added sensor design to prevent falling. It could offer better cleaning effect for your panels.

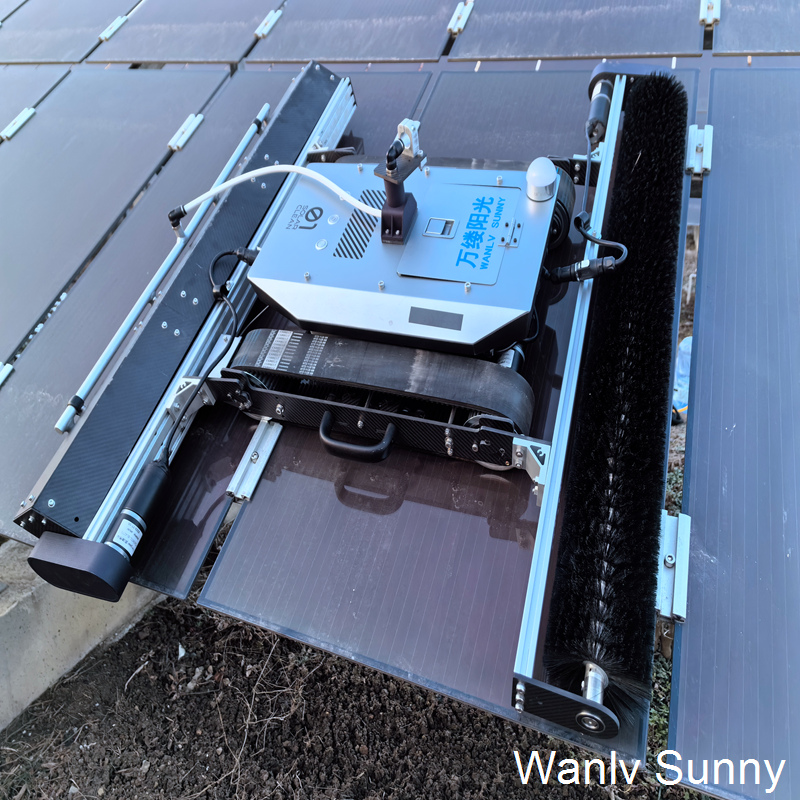

The robot has a innovate design, It has suck cup in the central of the bottom of the machine. This device could prevent the slipping when the robot turning.



Product Type

WLS-72Z

Product name

Automatic Cleaning Robot

Navigation

Vision AI+IMU

Main size(mm)

500*600 (exclude the rotary brush )

Main weight(kg)

8.5

Length of Roller Brush(mm)

1000

Roller brush module weight(kg)

4.5

Roller brush quantity

2

Cleaning efficiency(㎡/h)

1000

Battery capacity

24V 12Ah

Battery life (h)

3

Wet cleaning

Supported

Dry cleaning

Supported

Cleaning Path correction

Visual AI correction

Continue scanning
after breakpoint

Supported

Automatically return
to low battery

Supported

Working hours record

Supported

Wet washing working angle

0° -20°

Dry cleaning working angle

0° -30°

Vacuum suction cup

1

Ultrasonic downward looking sensor

4

remote control

Support 2.4G

Physical buttons

Power button: short press to turn on and off

Start/pause button: short press to start/
pause new cleaning

Breakpoint resume scan button: short press to trigger breakpoint resume scan

Light

Three color reminder light

Alarm prompt

Speaker

real-time monitoring

Camera (reserved)

4G model

Supported

Work log reading

Supported

Fault details reading

Supported
