WLS-7
WANLV

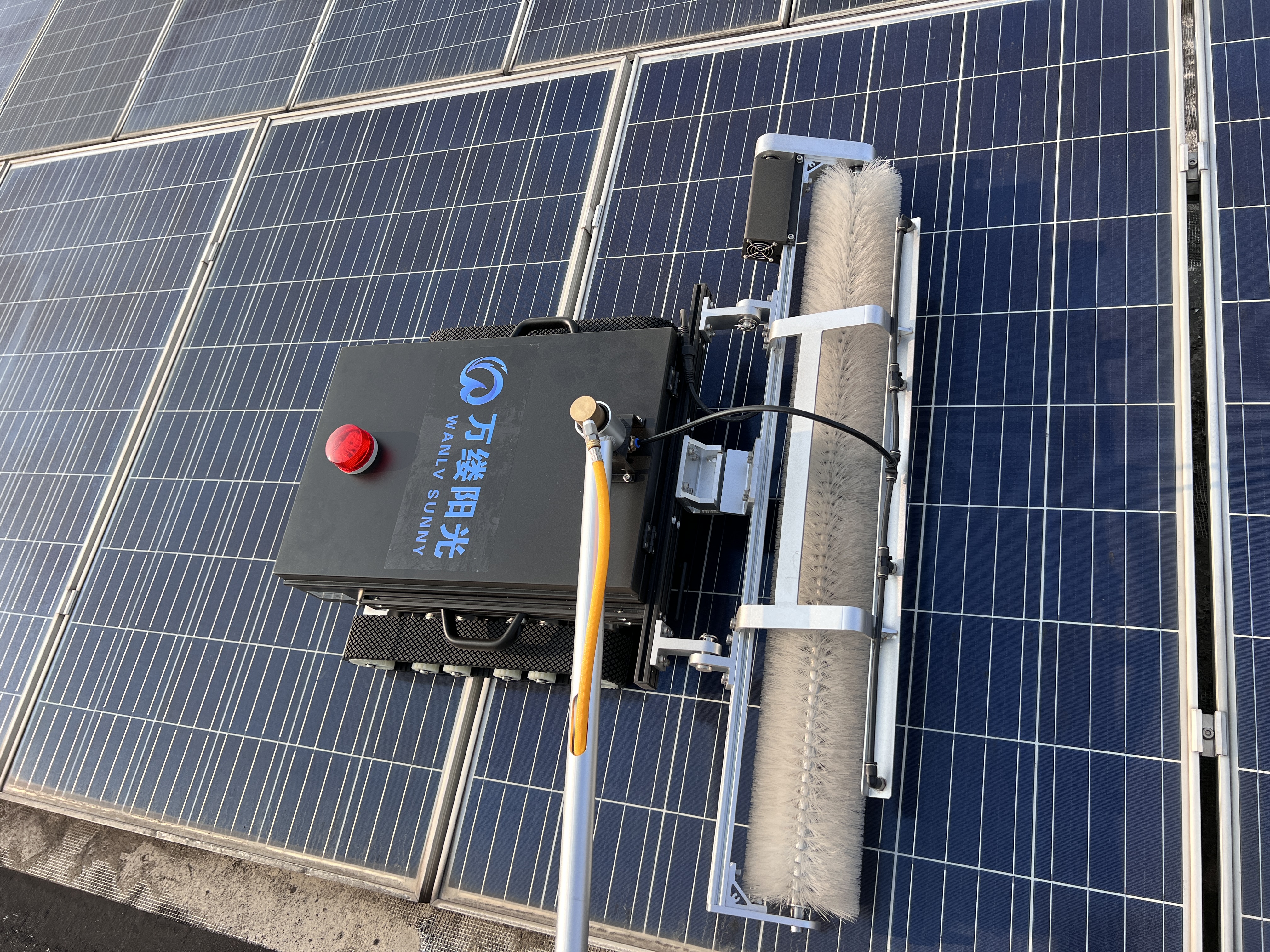

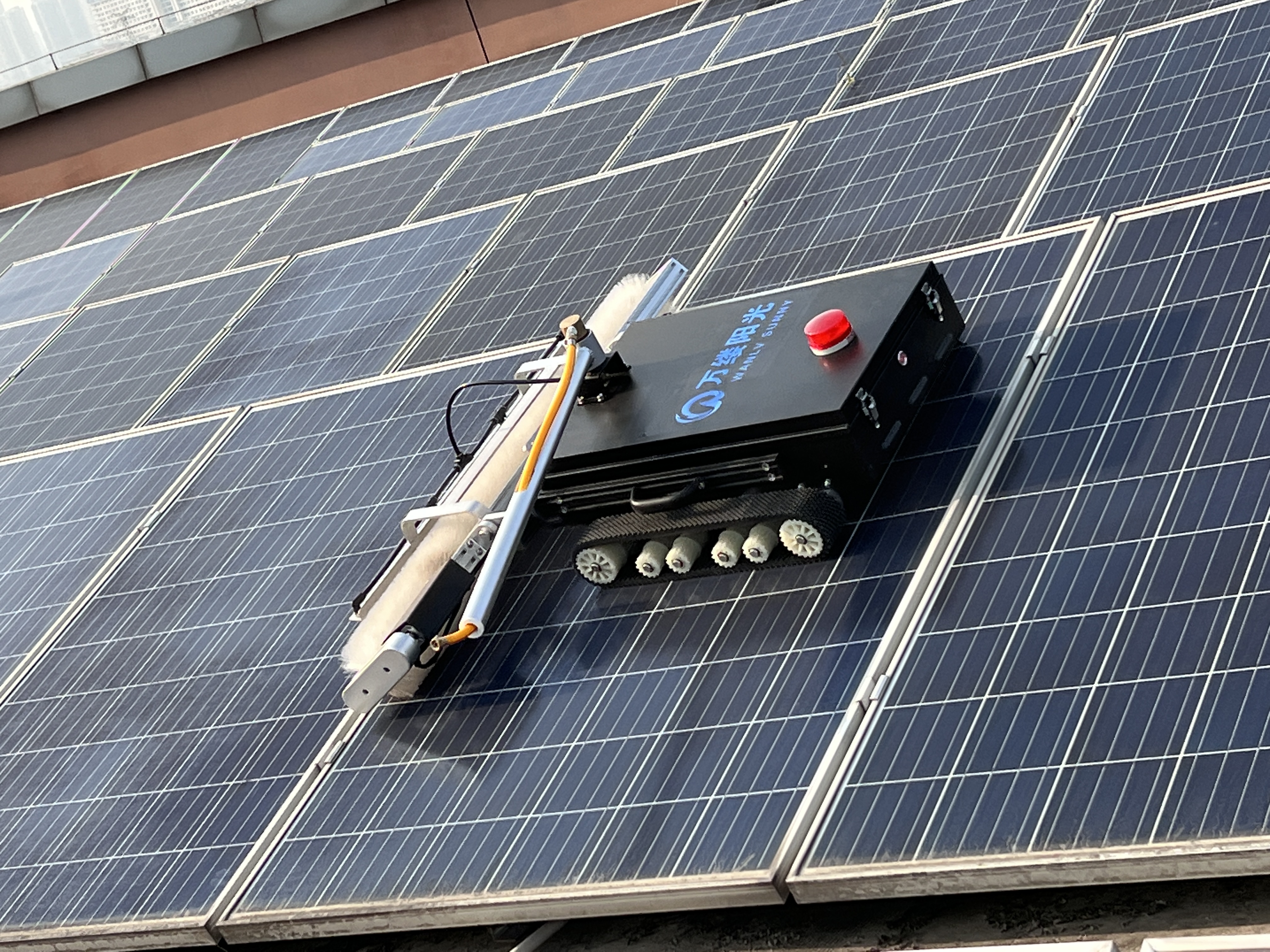

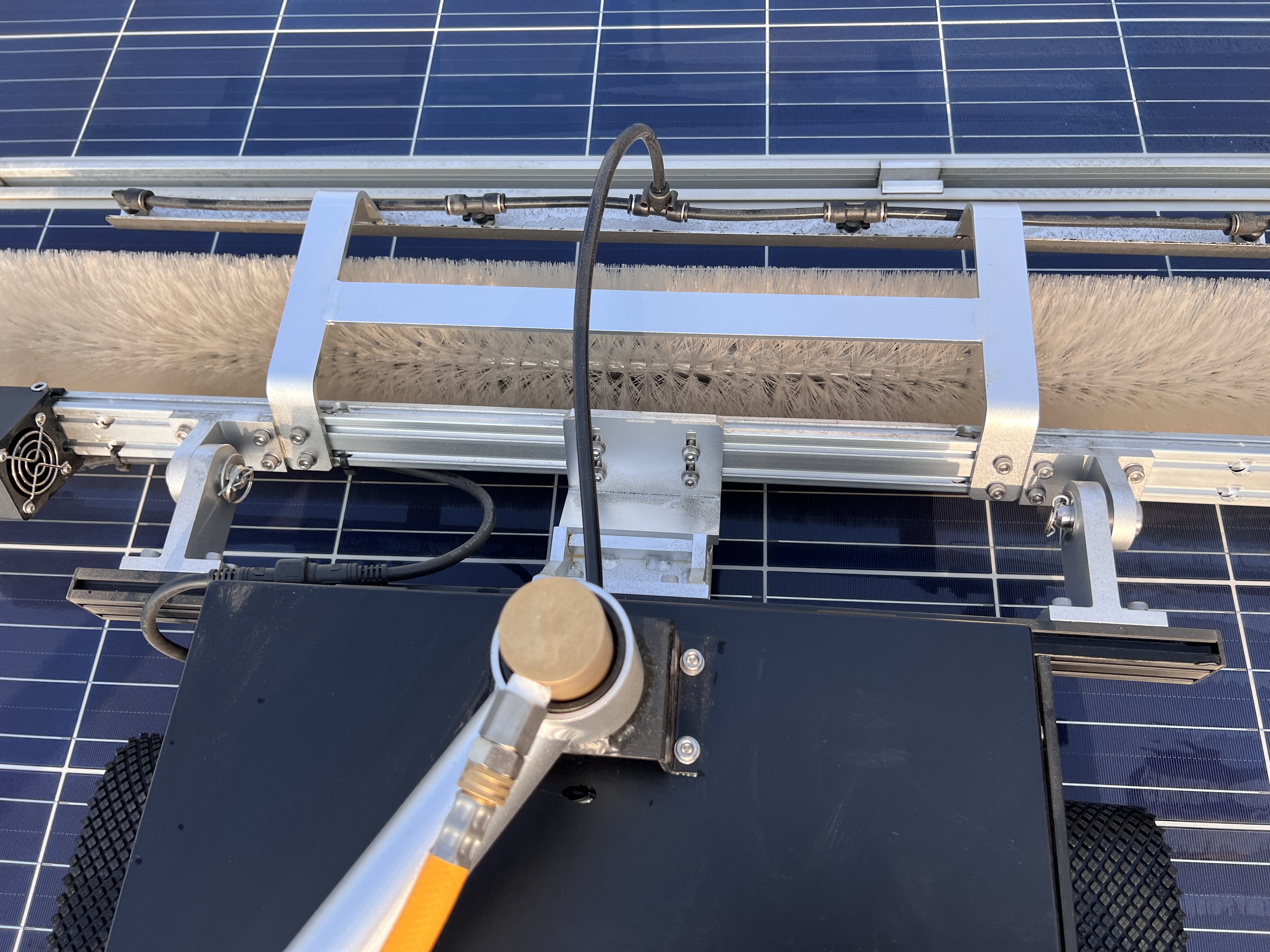

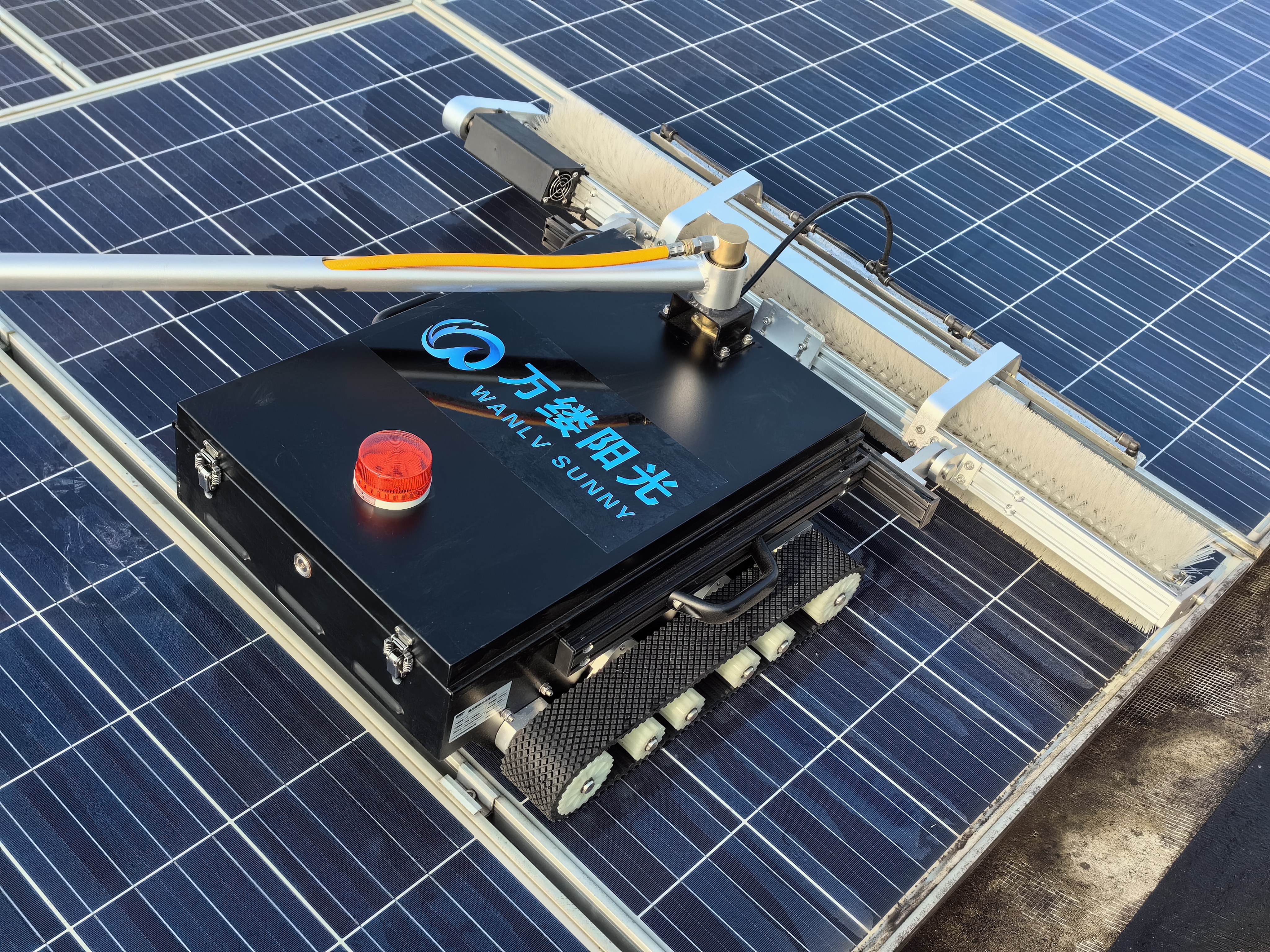

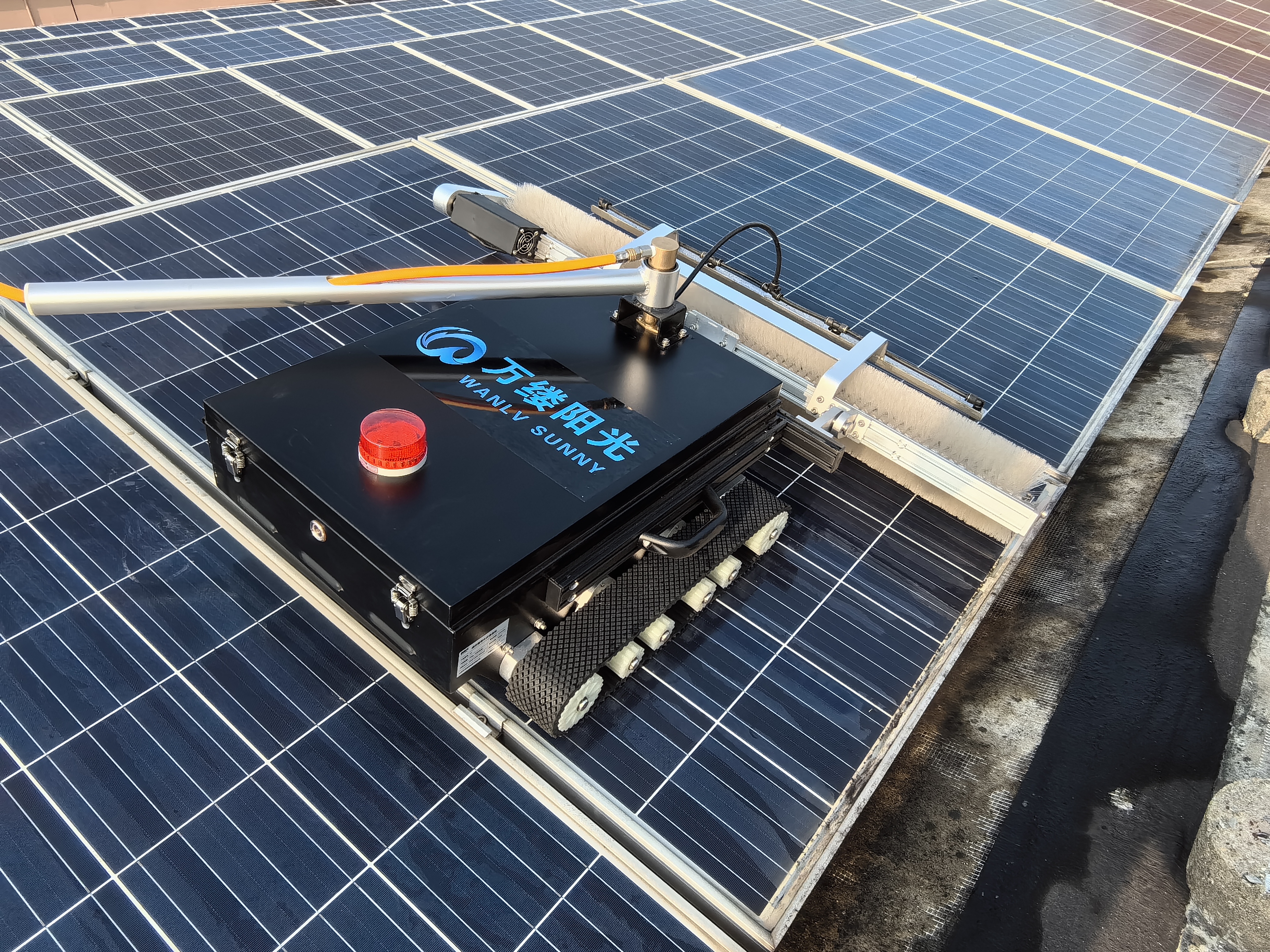

Caterpillar Rubber Tracker Solar Panels Cleaning Robot
Product Introduction
Model: WLS-7
Why use caterpillar rubber tracker instead of rubber wheel?
The caterpillar rubber tracker solar panel cleaning robot have the advantages of large traction, difficulty in slipping, good off-road performance, and high environmental adaptability. They are more adaptable to complex terrain environments than wheeled robots of the same type.
The advantages of caterpillar rubber tracker solar panel cleaning robot:
1. High flexibility
Support indoor and outdoor cross-regional transfers, it has strong obstacle-crossing ability and terrain adaptability, and can turn on the spot.It has good athletic ability, maneuverability and adaptability to complex ground, and is easier to control
2. Adapt to diverse scenarios
3. Easy to assembly
4. n the process of contact with the wheelset and panel, it can absorb more impact.
Caterpillar Rubber Tracker Solar Panels Cleaning Robot
Product Introduction
Model: WLS-7
Why use caterpillar rubber tracker instead of rubber wheel?
The caterpillar rubber tracker solar panel cleaning robot have the advantages of large traction, difficulty in slipping, good off-road performance, and high environmental adaptability. They are more adaptable to complex terrain environments than wheeled robots of the same type.
The advantages of caterpillar rubber tracker solar panel cleaning robot:
1. High flexibility
Support indoor and outdoor cross-regional transfers, it has strong obstacle-crossing ability and terrain adaptability, and can turn on the spot.It has good athletic ability, maneuverability and adaptability to complex ground, and is easier to control
2. Adapt to diverse scenarios
3. Easy to assembly
4. n the process of contact with the wheelset and panel, it can absorb more impact.
working principle | DC motor controls travel and brush rotation | ||||||
Operating Voltage | 24V | ||||||
Power supply | Lithium battery (24V)*2 pieces | ||||||
Battery life | 3-4 hours | ||||||
idling speed | 500 rpm | ||||||
Cleaning width | 1100mm | ||||||
Cleaning type | Dry cleaning/washing | ||||||
Bristles material | nylon | ||||||
travel speed | 11-12m/minute | ||||||
Amount of water used | 20L/min | ||||||
Control Method | Remote handle control | ||||||
working angle | 25°≤ | ||||||
range of working temperature | -20-50℃ | ||||||
Dimensions | 1190*970*350mm | ||||||
equipment weight | 29kg (excluding battery) |
working principle | DC motor controls travel and brush rotation | ||||||
Operating Voltage | 24V | ||||||
Power supply | Lithium battery (24V)*2 pieces | ||||||
Battery life | 3-4 hours | ||||||
idling speed | 500 rpm | ||||||
Cleaning width | 1100mm | ||||||
Cleaning type | Dry cleaning/washing | ||||||
Bristles material | nylon | ||||||
travel speed | 11-12m/minute | ||||||
Amount of water used | 20L/min | ||||||
Control Method | Remote handle control | ||||||
working angle | 25°≤ | ||||||
range of working temperature | -20-50℃ | ||||||
Dimensions | 1190*970*350mm | ||||||
equipment weight | 29kg (excluding battery) |
