Crawler Type Remote Control Solar Panel Cleaning Robot with Rotating Brush

Availability:
Quantity:

Crawler Type Remote Control Solar Panel Cleaning Machine Rotating Brush


Product  Description

Model Type: WLS-7

Power Supply: Lithium Battery *2 Pieces

Control Method: Remote Handle Control



The use of robot remote control can focus on solving cleaning environments where people cannot stand or telescopic poles cannot reach.


The Cleaner is able to achieve long-distance coverage of 150 meters.

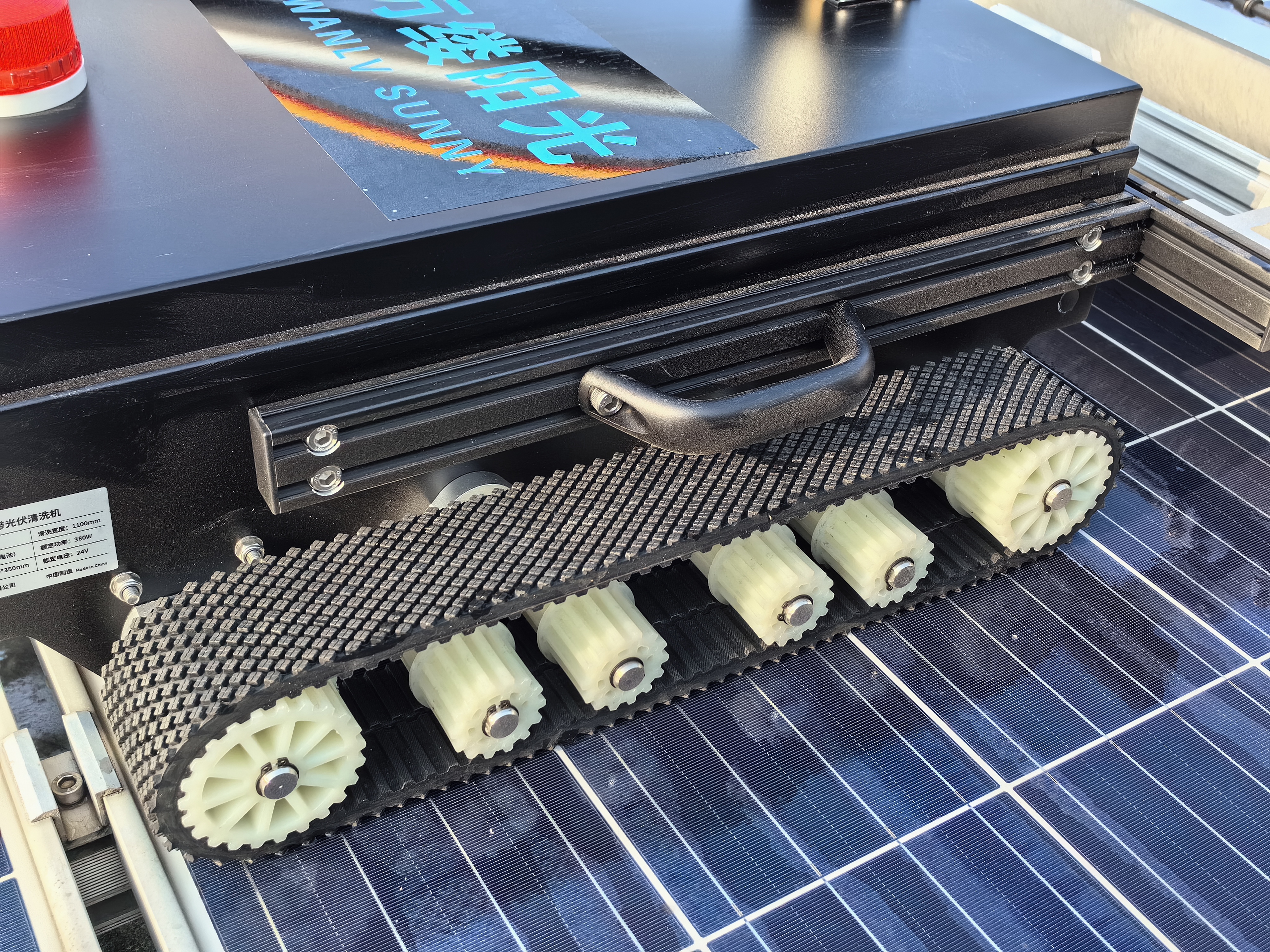

The design of the crawler chassis allows walking in different directions,making the operation more flexible.

The track can increase the contact area with the ground, disperse the dead weight, and reduce damage to the panel;

the rubber track has smoother and faster driving performance;

the rubber track has better elasticity and stronger deformation ability.

In the process of contact with the wheelset and panel, it can absorb more impact. The machinery runs more smoothly and effectively extends the service life of the machinery.


Compared with traditional manual cleaning,the cleaning efficiency can be improved many times,and the cleaning efficiency can reach 1.0 MW in one day.

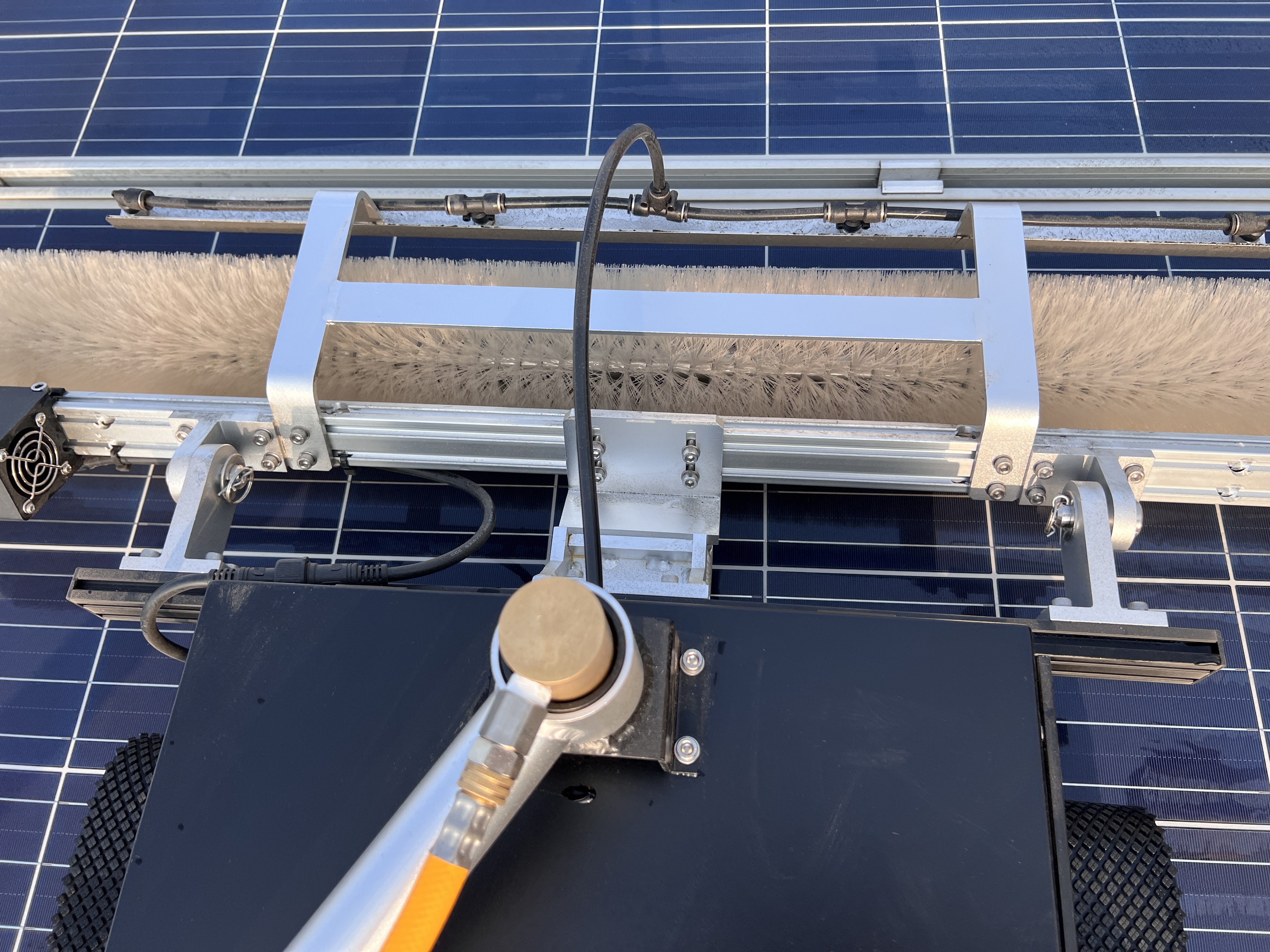

The rotating brush can be dry cleaned or washed. The cleaning width can reach 1100mm each time and the traveling speed can reach 25 meters/minute.


With our photovoltaic cleaning robot,you can keep your photovoltaic power generation equipment clean and improve power generation efficiency.


Working Principle


DC motor controls travel and brush rotation

Operating Voltage


24V




Power Supply


Lithium battery (24V)*2 pieces


Endurance Time


5 hours


Idling Speed


250 rpm




Cleaning Width


1100mm




Cleaning Type


Dry cleaning/ Washing


Bristles Material




Nylon




Travel Speed


25m / minute


Amount of Water Used


According to the method of on-site water supply

Control Method


Remote handle control


Working Angle


≤15°




Range of Working Temperature


-20℃~50℃


Dimensions


1200*1000*350 mm


Equipment Weight


29kg (excluding battery)
