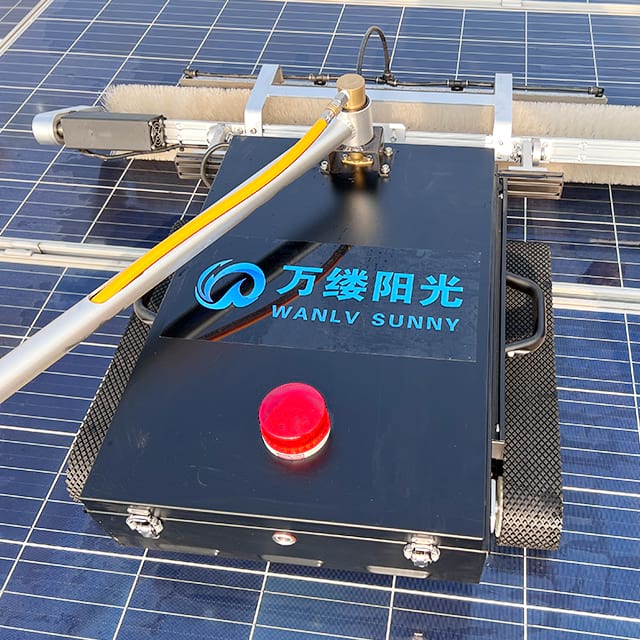

Remote Control Robot with Rotating Solar Panel Cleaning Bristle Brush

Availability:
Quantity:

Product Introduction

Model: WLS-7


How about the Control function of Remote Control Robot with Rotating Solar Panel Cleaning Bristle Brush?

The average RC Robot with Rotating Solar Panel Cleaning Bristle Brush has a transmission range of between 150 and 300 feet and operates on the 2.4 GHz band.

Depending on the power source and its quality, the average RC Robot can reach speeds of 10 to 12 meter per minute.

The rotation speed of the rotating cleaning brush can reach 500rpm,which make a better performance.


Distinguished advantages of Remote Control Robot with Rotating Solar Panel Cleaning Bristle Brush

1.Start running with one click

2.Automatic return to home when low battery

3.Lightweight zero burden on solar panel

4.Batteries are replaceable

5.No Worries about the power supply

6.Significantly improve power generation efficiency


Solar panel cleaning robots are automated devices specifically designed to clean solar panels efficiently and effectively. Here's how they are typically used:

  1. Setup: The solar panel cleaning robot is placed near the solar panel installation. It may be manually positioned or guided by a pre-programmed path for larger installations. The robot is equipped with sensors and safety features to prevent any damage to the panels or surrounding structures.

  2. Power Source: The robot is powered by either a built-in rechargeable battery or connected to an external power source.

  3. Navigation: The robot uses various navigation methods to move across the solar panels. This can include wheels, tracks, or even suction cups for gripping the panel surfaces.

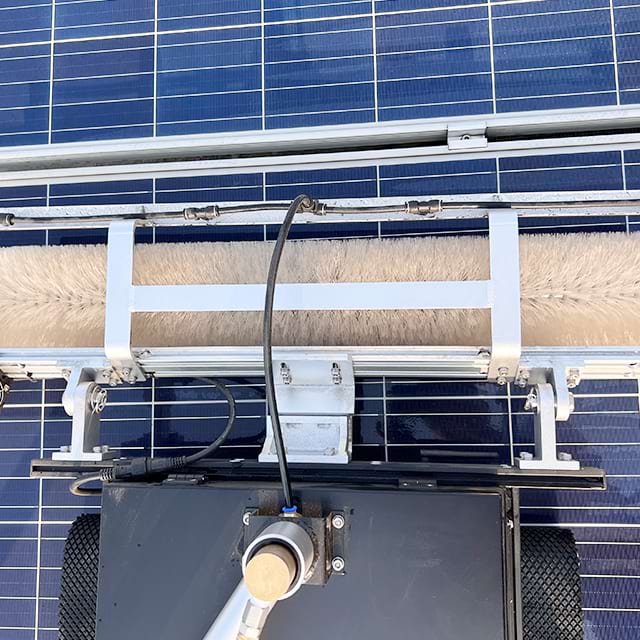

  4. Cleaning Mechanism: The cleaning mechanism of the robot typically consists of rotating brushes, nozzles, or microfiber pads. Some robots may also have the ability to spray water or cleaning solutions for enhanced cleaning.

  5. Cleaning Process: Once the robot is in position, it starts the cleaning process. It moves systematically across the solar panel array, ensuring that every panel is thoroughly cleaned.

  6. Monitoring and Control: Solar panel cleaning robots may have built-in sensors and cameras to monitor the cleaning process. This allows operators to remotely monitor the robot's progress and make any necessary adjustments.

  7. Safety Features: Solar panel cleaning robots are equipped with safety features to prevent damage to the panels or surrounding structures.


Working principle

DC motor controls travel and brush rotation

Operating voltage

24V

Power supply

Lithium battery (24V)*2 pieces

Battery life

3-4 hours

Idling speed

500 rpm

Cleaning width

1100mm

Cleaning type

Dry cleaning/washing

Bristles material

nylon

Travel speed

11-12m/minute

Amount of water used

20L/min

Control method

Remote handle control

Working angle

25°≤

Range of working temperature

-20-50℃

Dimensions

1190*970*350mm

Equipment weight

29kg (excluding battery)
