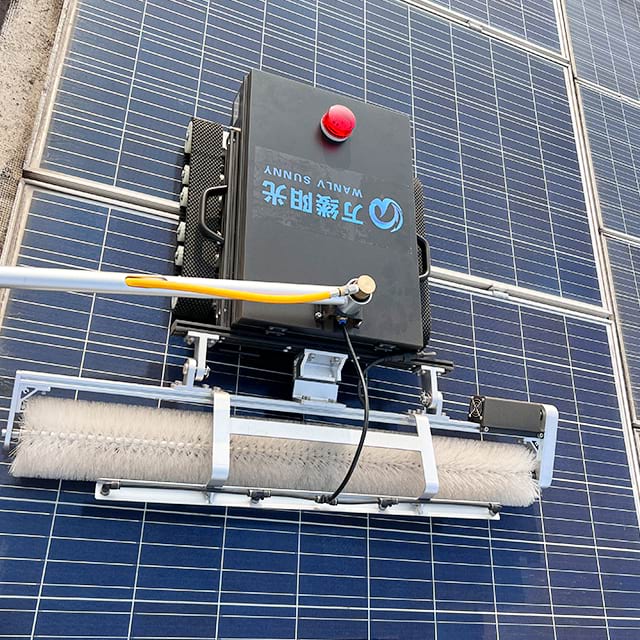

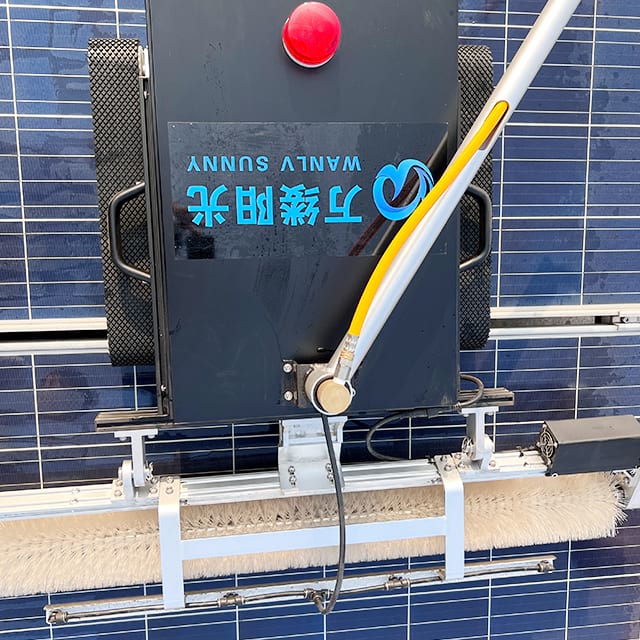

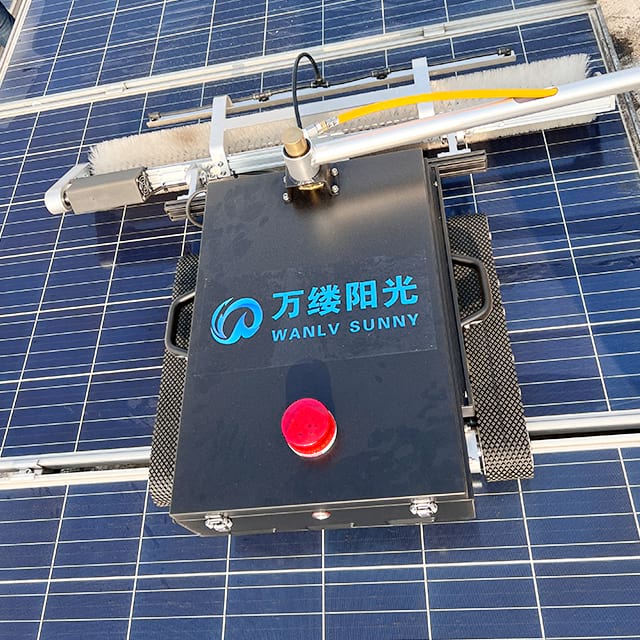

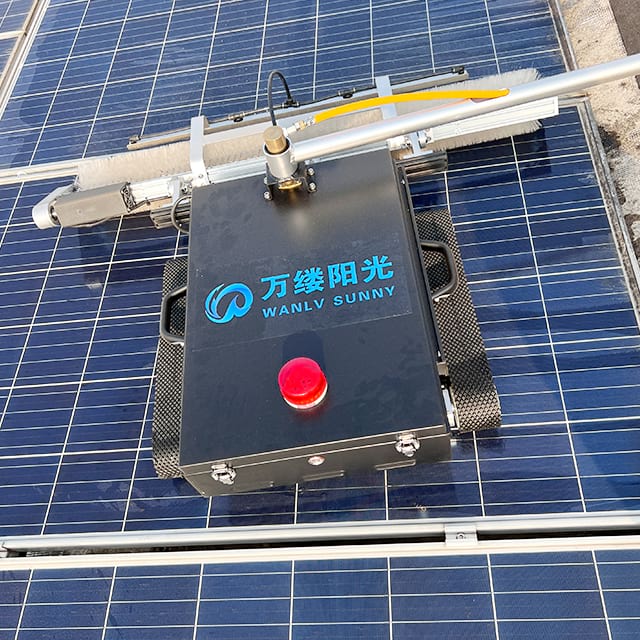

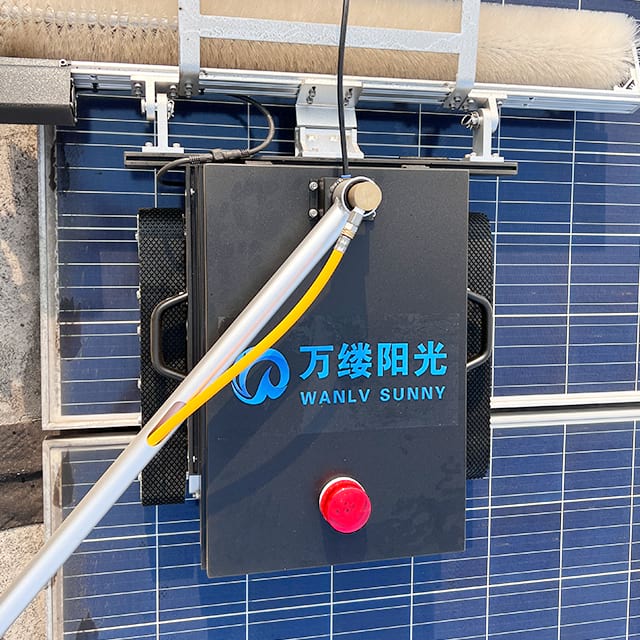

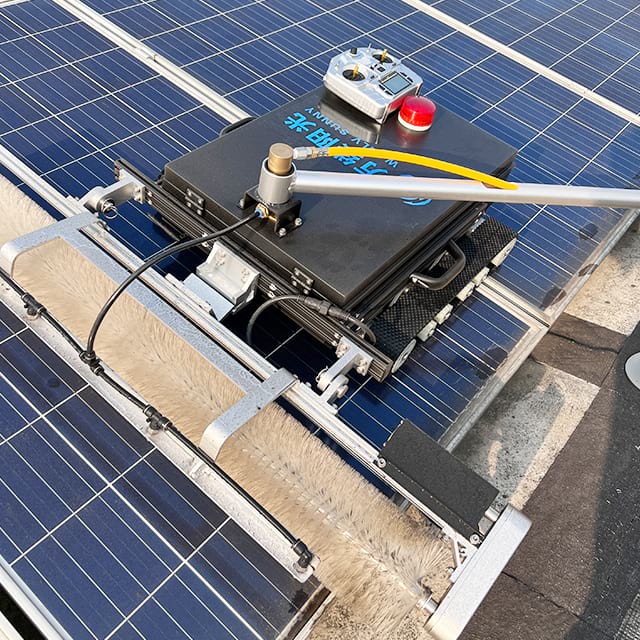

Solar Panel Cleaning Machine Solar Cleaner Robot with Nylon Bristles Brush

Availability:
Quantity:

Product Introduction

Model: WLS-7


Brief  Discuss for Cleaning Work

It is understood that the life cycle of photovoltaic power plants is generally as long as 25 years, which can be said to have gone through years of changes and pollution.

For photovoltaic power stations, dust pollution is an important factor affecting power generation. It will not only reduce the amount of light irradiation received by components, affect system efficiency, and reduce power generation, but partial shading will also cause hot spot effects, resulting in power generation loss and impact lifespan of components while creating safety hazards.

In the past, photovoltaic power plants often used manual cleaning mode for cleaning and maintenance. However, manual cleaning mode has many shortcomings.

1.A large number of cleaning personnel need to be hired, which is labor-intensive and difficult to manage;

2.The cleaning process is difficult to control resulting in different degrees of cleanliness of PV panels;

3.Improper operations during the manual cleaning process can easily cause wear and tear on the component glass.


Under various restrictions, Solar Panel Cleaning Machine Solar Cleaner Robots have begun to gradually intervene in the intelligent construction of photovoltaic power stations and have begun to obtain batch results due to their advantages such as scheduled cleaning, self-power supply, self-storage, no need for external power supply, waterless cleaning, and free setting of operating time and frequency. application opportunities.


According to the person in charge of a photovoltaic power generation enterprise, Solar Panel Cleaning Machine Solar Cleaner Robot will bring at least two benefits to the development of the industry. First, it solves the manpower problem and reduces labor costs; second, it solves the safety problems that rely on manual cleaning.

Working principle

DC motor controls travel and brush rotation

Operating voltage

24V

Power supply

Lithium battery (24V)*2 pieces

Battery life

3-4 hours

Idling speed

500 rpm

Cleaning width

1100mm

Cleaning type

Dry cleaning/washing

Bristles material

nylon

Travel speed

11-12m/minute

Amount of water used

20L/min

Control method

Remote handle control

Working angle

25°≤

Range of working temperature

-20-50℃

Dimensions

1190*970*350mm

Equipment weight

29kg (excluding battery)
