Tracker 100M Remote Control Panel Cleaning Robot
| Quantity: | |
|---|---|

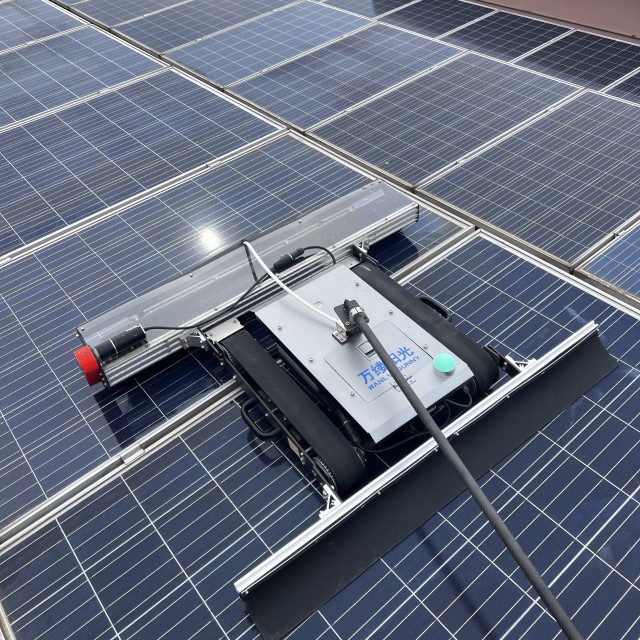

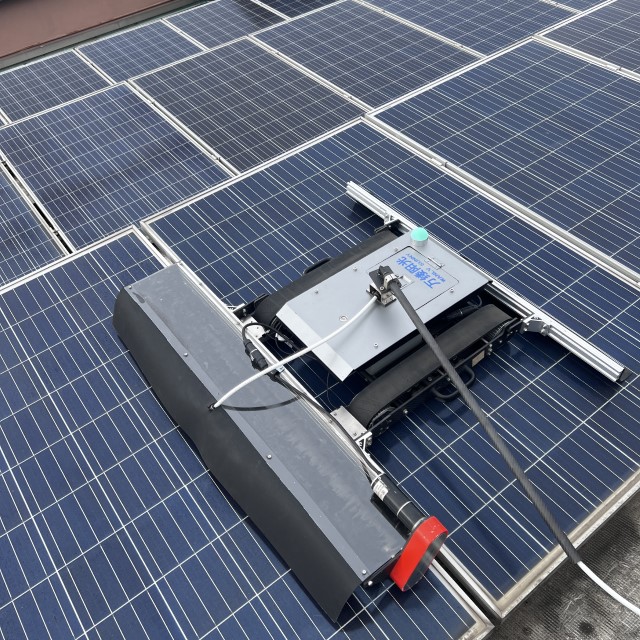

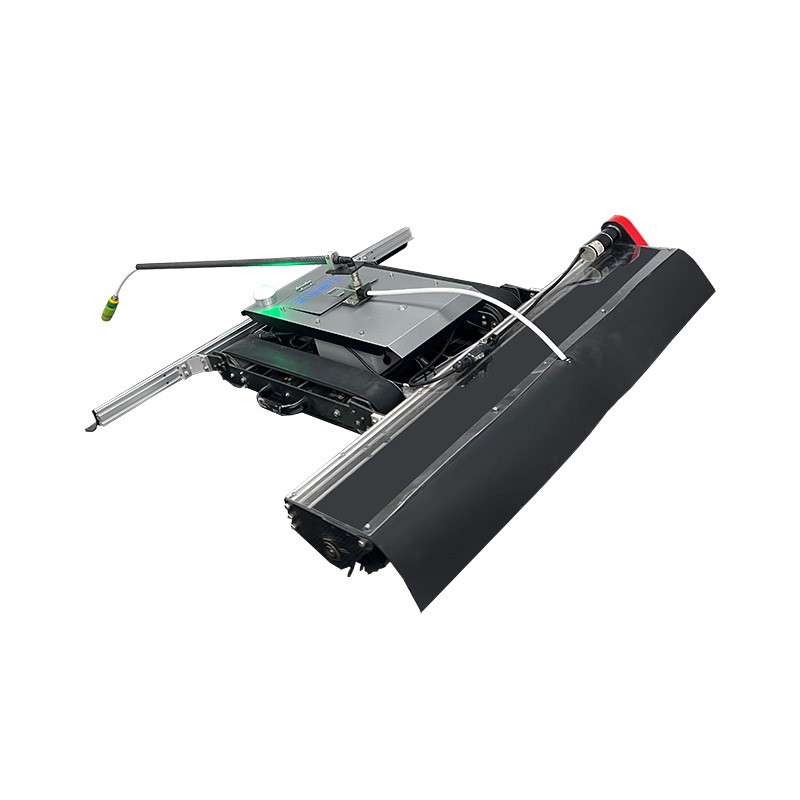

Tracker 100M Remote Control Panel Cleaning Robot
Product Overview
As a leading Aerial Cleaning Machine supplier, we proudly introduce the Tracker 100M Remote Control Panel Cleaning Robot. Designed to enhance the efficiency and safety of solar panel maintenance, this innovative machine stands out with its advanced technology and superior performance. Ideal for photovoltaic power stations, the Tracker 100M ensures optimal energy output by keeping solar panels spotless and functioning at their best.
Key Features
Dual Cleaning Modes: Offers both wet and dry cleaning options to suit various conditions and requirements.
Remote Control Capability: Operate the machine wirelessly up to 100 meters, providing flexibility and ease of use.
High-Efficiency Cleaning: Equipped with a high-speed roller brush and water spray nozzles for thorough and efficient cleaning.
Lightweight and Portable: Weighing just 22kg (excluding battery), it is designed for easy transport and installation.
Safety and Reliability: Features four sets of downward-looking sensors and suction cups to prevent falls on inclined surfaces.
Long Battery Life: Powered by a 24V 12Ah lithium battery, it offers up to 3 hours of continuous operation.
Robust Construction: Built with a carbon fiber module and rated IP65 for protection against dust and water.
Technical Specifications
Length of Roller Brush: 1000mm
Cleaning Efficiency: 600m²/h
Remote Control Distance: 100 meters
Battery Capacity: 24V 12Ah
Battery Life: 3 hours
Traveling Speed: 0.25-0.3m/s
Wet Washing Working Angle: 0°- 15°
Dry Cleaning Working Angle: 0°- 20°
Main Size: 560540290mm (without brush)
Main Weight: 14kg (without brush)
Class of Protection: IP65
Applications
The Tracker 100M Remote Control Panel Cleaning Robot is specifically designed for photovoltaic power stations. It is an essential tool for maintaining solar panels, ensuring they remain clean and efficient, thus maximizing energy production.
How to Use
Install the lithium battery.
Connect the water supply joint to the water pipe (if equipped, connect the water pump).
Place the device on the photovoltaic panel.
Use the remote control to operate the device, as described in the instructions.
Warranty Information
Drive Motor, Lithium Battery, Charger: 12 months
Electronic Components: 6 months
Note: Consumables such as brush heads, tracks, squeegees, and belts are not covered by the warranty.
FAQ
Q1: What type of cleaning does the robot perform?A1: The Tracker 100M offers both dry and wet cleaning options, making it versatile for different cleaning needs.
Q2: How far can the robot be controlled remotely?A2: The robot can be operated wirelessly up to a distance of 100 meters.
Q3: What is the battery life of the Tracker 100M?A3: The lithium battery provides up to 3 hours of continuous operation.
Q4: Is the robot safe to use on inclined surfaces?A4: Yes, the robot is equipped with suction cups at the bottom that activate on high inclinations to prevent falls.
Q5: How efficient is the cleaning process?A5: The Tracker 100M can clean up to 600 square meters per hour, making it highly efficient.
