WLS-73Z-AUTOMATIC CLEANING ROBOT

Availability:
Quantity:

Product Name:

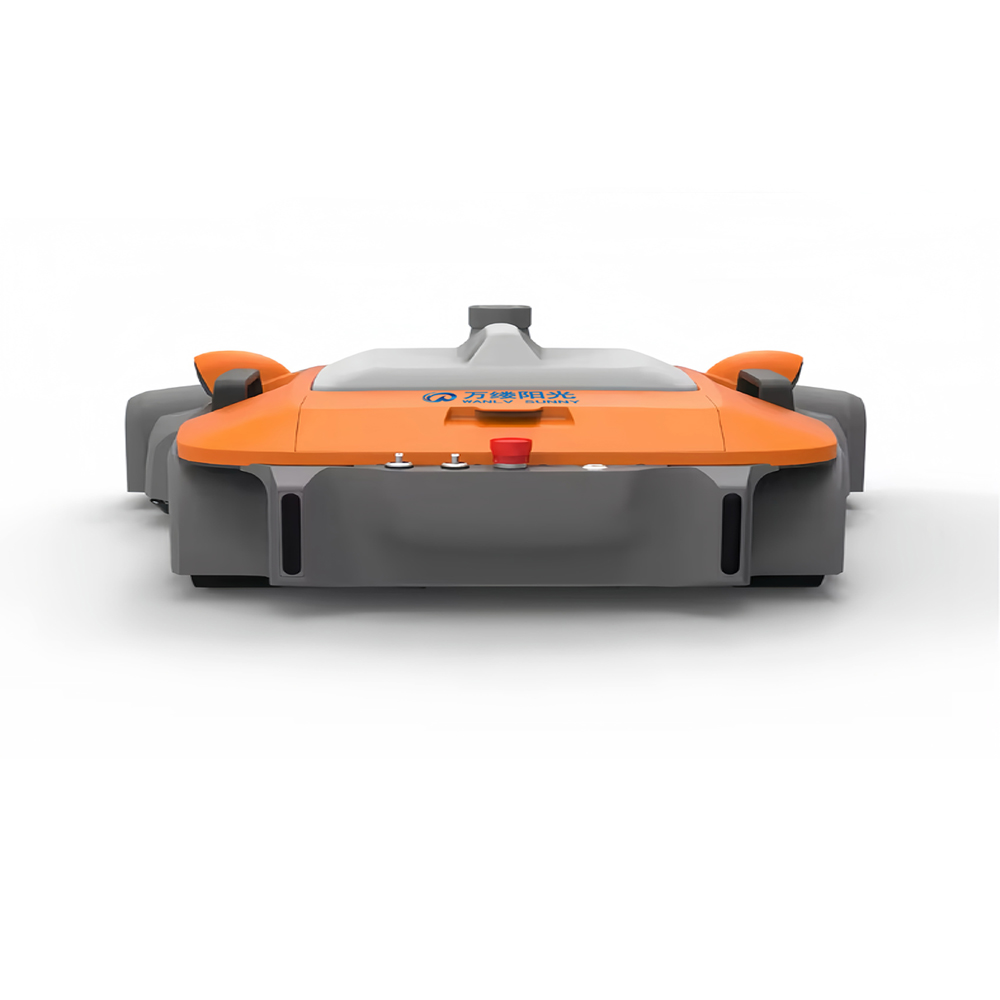

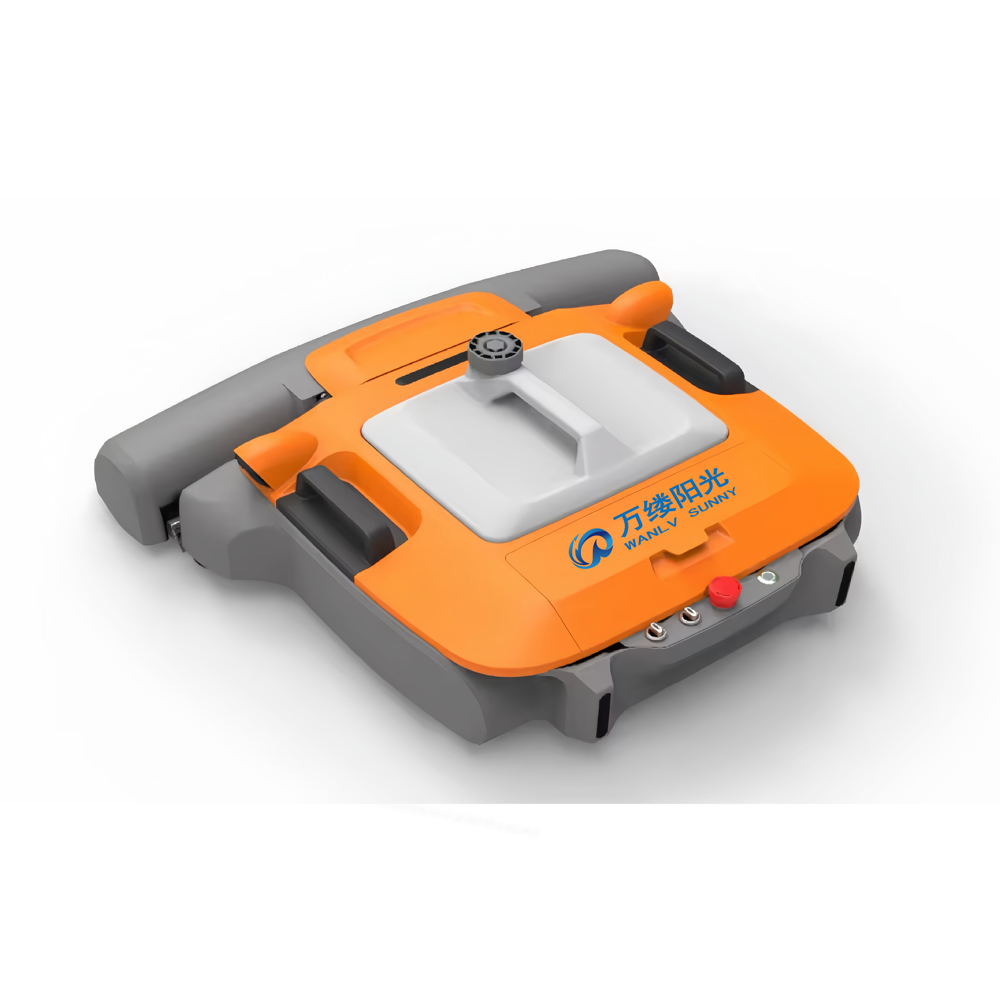

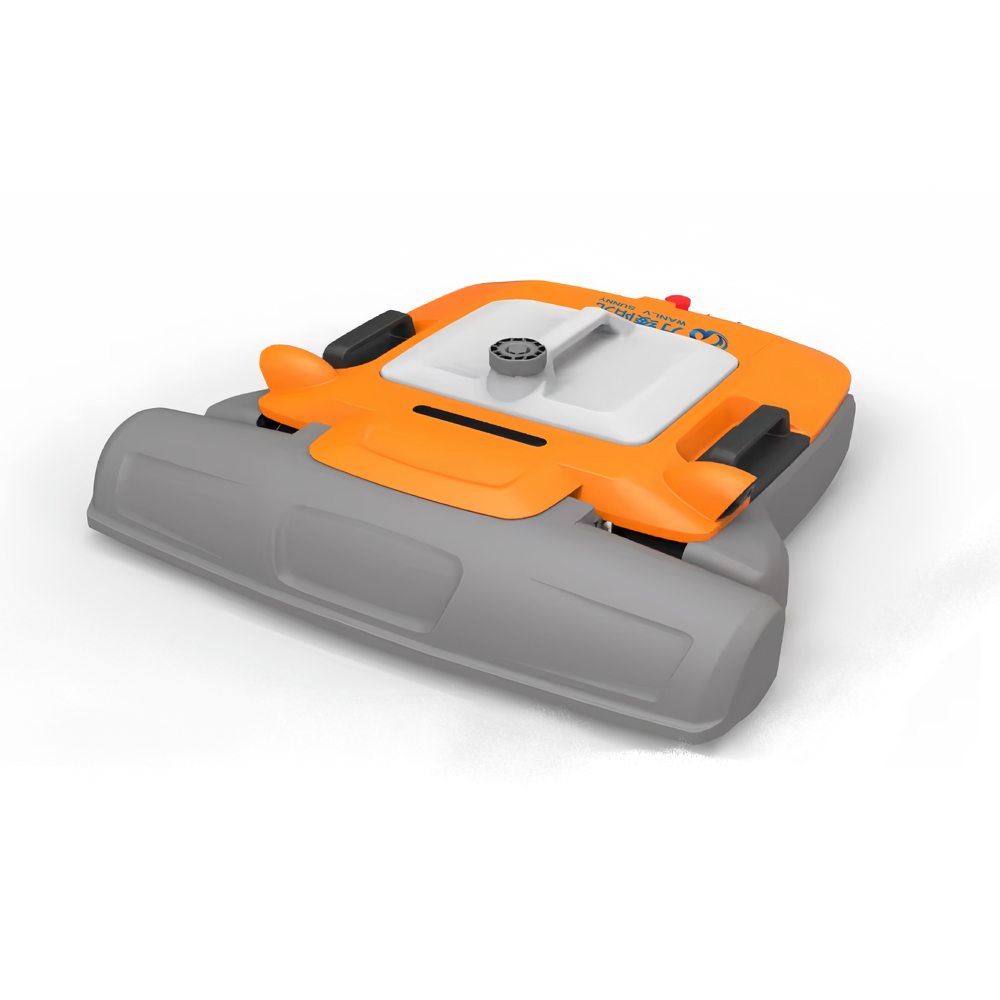

Autonomous solar panel cleaning robot that can work at a 30-degree Inclination


Product introduction

Model :WLS-73Z


Brief introduction


Autonomous solar panel cleaning robots are designed to work in difficult environments where humans cannot access them, or where telescopic rods are too high. The use of photovoltaic cleaning robots can improve the power generation efficiency of solar panels and extend their service life, while also reducing the cost and work risk of manual cleaning.


These robots have many advantages. First of all, they can automatically identify the array type and component size, independently plan the cleaning path, and ensure the cleaning effect and operation. They also have intelligent anti-slip and anti-drop technology, through the joint design of structure, sensors and intelligent control, to ensure stable walking on smooth slopes and array edges, long-term testing without slipping risk. This enables them to be cleaned efficiently in a variety of photovoltaic panel configurations and environmental conditions. Powered by a reliable lithium battery, it uses smart floating sweeping technology and track optimization to layer clean dust, debris and dirt on the surface of the solar panel, as well as mild and moderate oil stains with neutral cleaners. Due to structural optimization and lightweight design, the product is very light and will not damage the panel. It also has a modular design, the body, cleaning head, battery and water tank can be quickly disassembled and installed, easy to transport and carry equipment. Finally, it also has night vision function, which can work at night, greatly improving work efficiency.


The battery of the device can last for 6H on full charge, and the battery of the device can be quickly replaced. After the battery is removed, the charging time is 5 hours, suitable for European and Japanese standards. Battery parameters are 25.2V, 25.6Ah. There is a set of 8l water tank inside the main body of the robot, which can be quickly inserted and replaced with a spare water tank. The water duration is 1H, and the water quantity can be adjusted according to the pollution degree. The robot can clean up to 300㎡/H, and the daily cleaning volume is about 350KW. The robot can clean in an ambient temperature of 5°-30°C, and the component temperature is 5° -50°C. It is recommended to clean in the morning, evening, cloudy and light rain weather.



Product namePhotovoltaic cleaning robot
Ambient temperature5~35℃
Operating voltage rangeDC: 25V~29.4V
Power of the machine350W
Cleaning efficiency300m²/h
Moving speed0.15m/s
Woking InclinationStandard version≤20°
High configuration version≤30°
Remote controlRemote control within 30 meters
The chargerMaximum charging voltage 29.4V, charging current 5A
Charging time of battery pack5.5 hours
Battery pack capacity25.6 Ah
Weight of productNet weight : 28kg, water tank capacity: 8L
EnduranceBattery endurance time: photovoltaic panel angle≦20 degrees, endurance time is 6 hours; photovoltaic panel angle >20 degrees, endurance time is 3 hours
Water endurance time: 60% of water pump speed regulation, about 75 minutes; 80% of water pump speed regulation, about 45 minutes
Obstacle passing abilityComponent gap, array spacing ≤50mm, Component height difference ≤15m
Complete machine protection and service lifeIP55 /6 years
