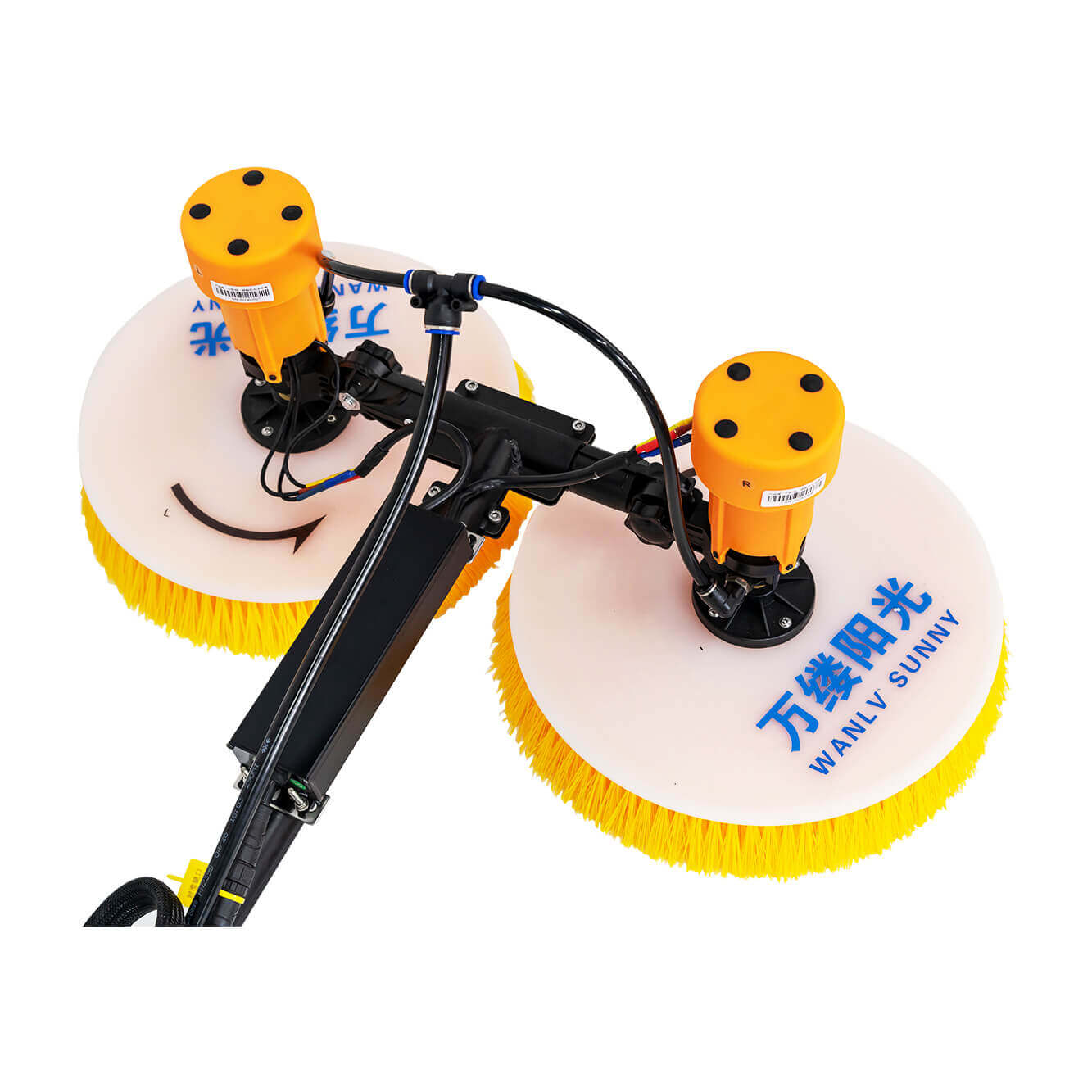

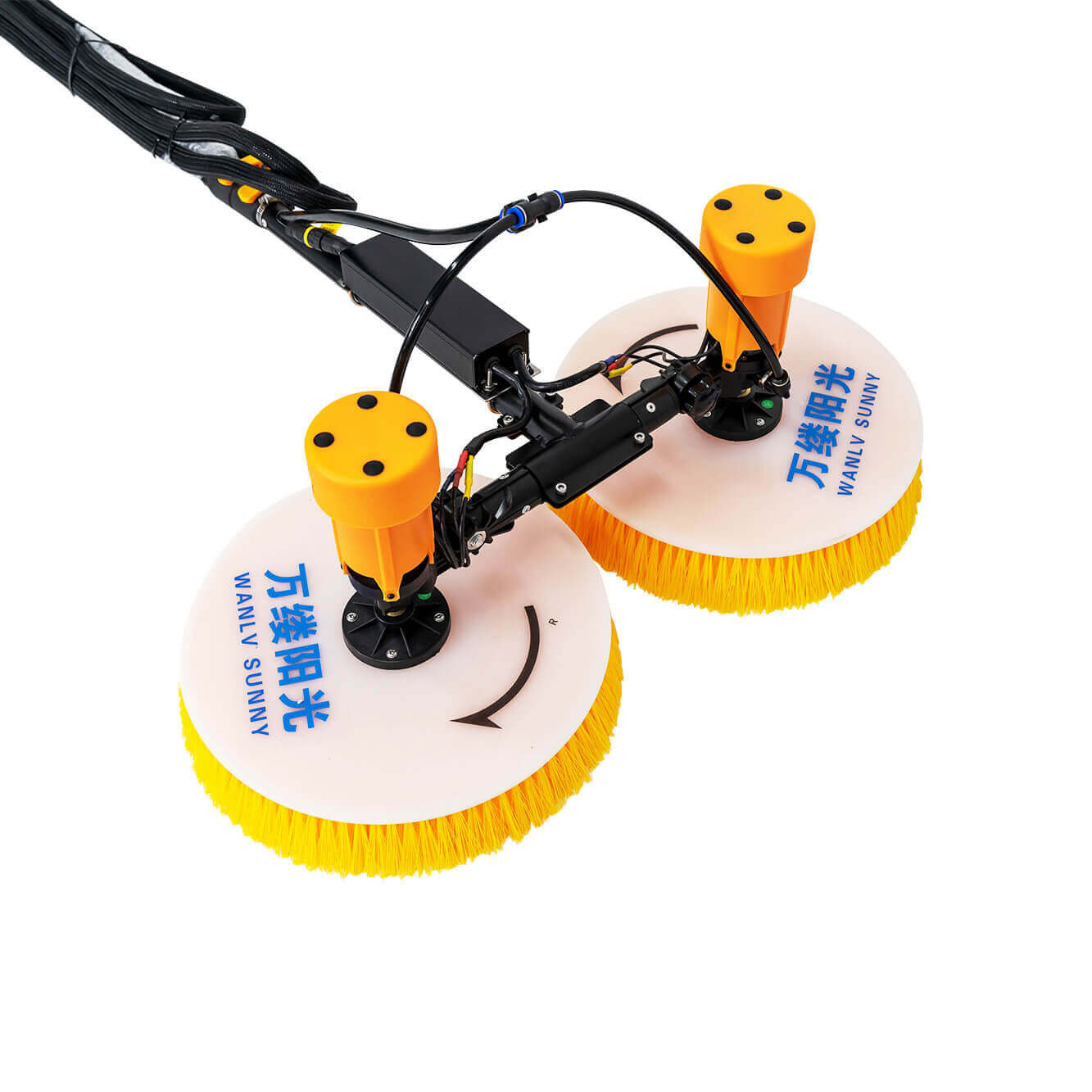

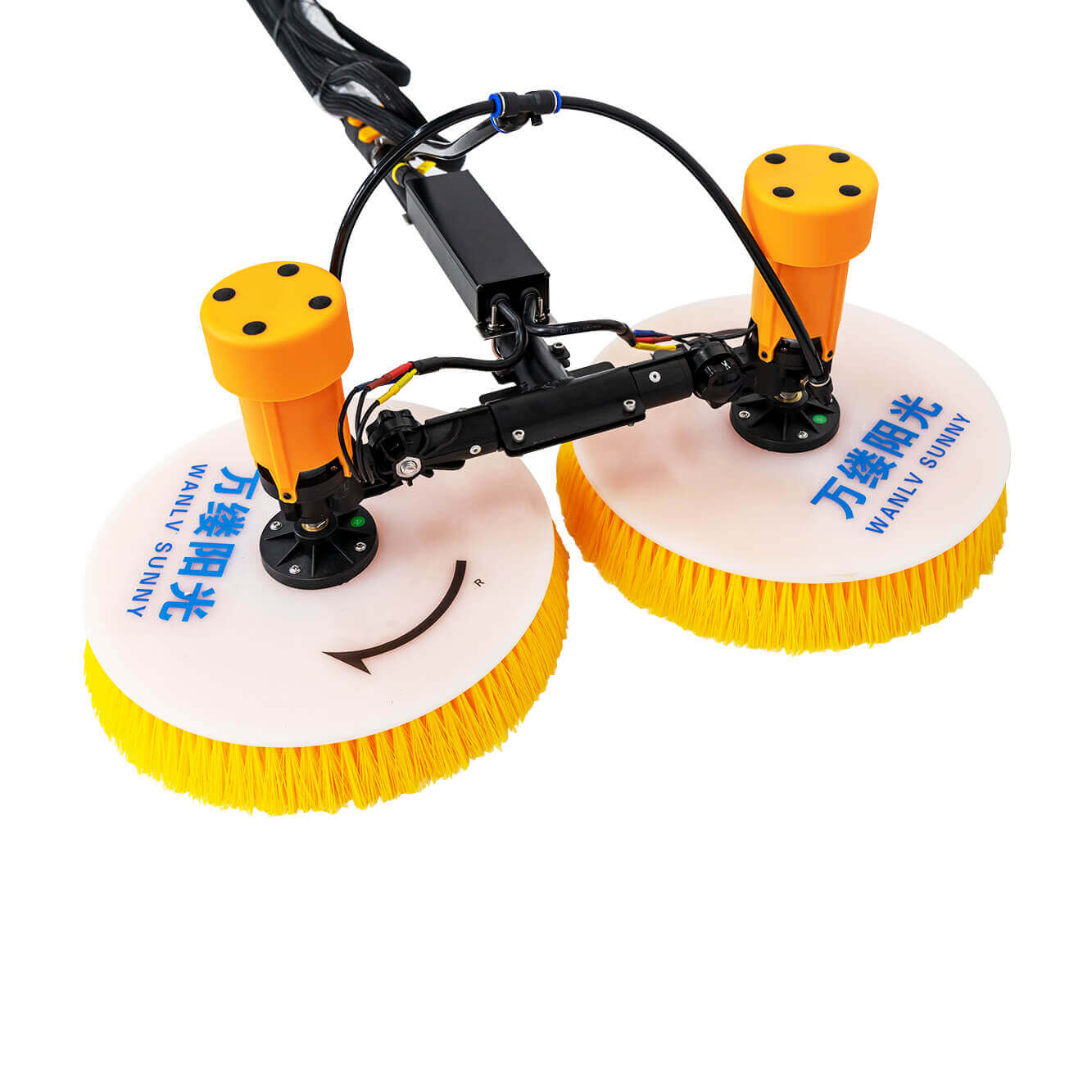

Double head solar panel cleaning brush is a tool used to clean solar panels and usually consists of the following main parts:

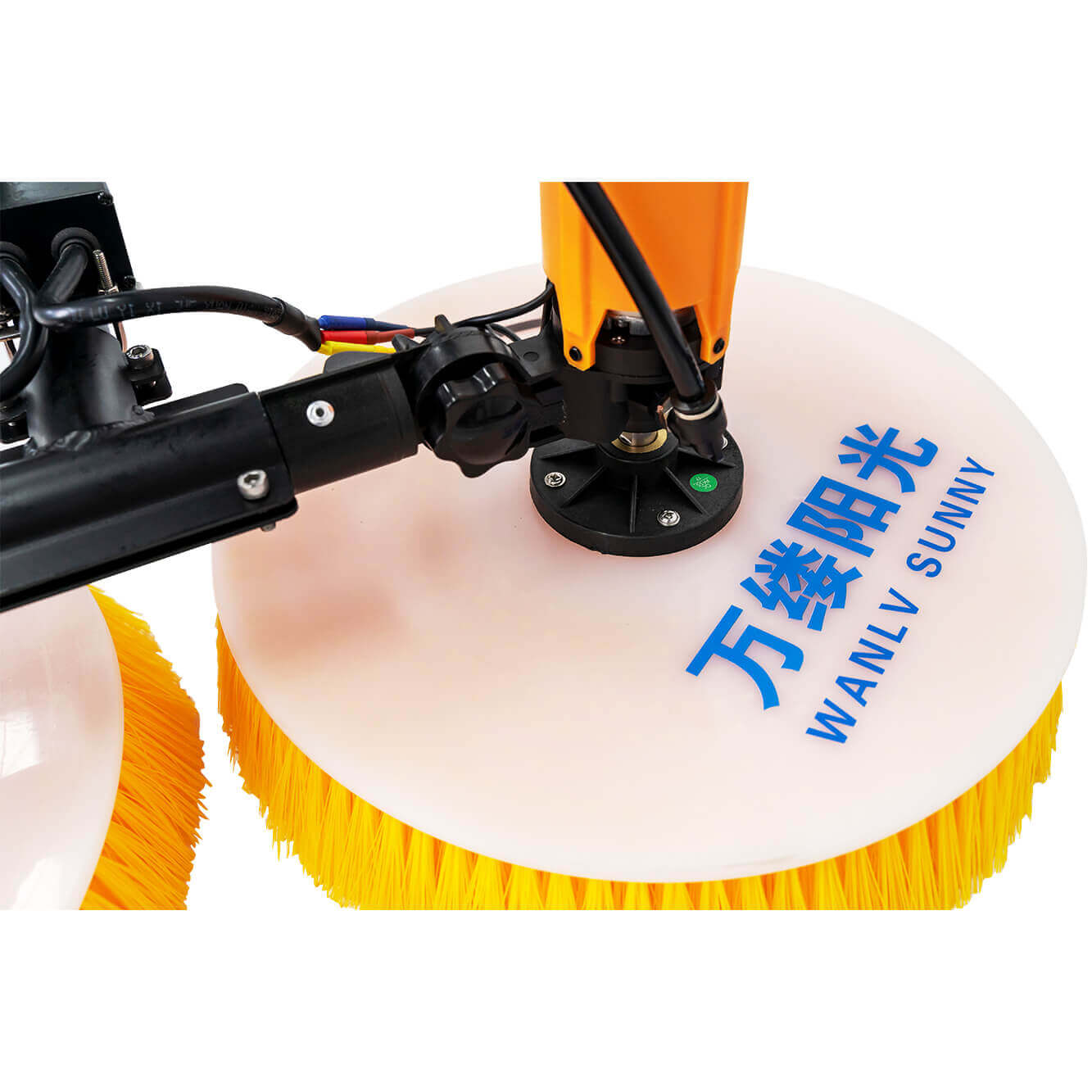

Brush head: The brush head of the solar panel cleaning brush is the part used to contact and clean the surface. The brush head usually consists of bristles and can be made of different materials, such as soft-bristled brushes, stiff-bristled brushes or rubber brushes. The texture and hardness of the cleaning brush head are designed to adapt to different types of solar panel surface materials to ensure that the cleaning process does not damage the panels.
Handle: The handle of the Double head solar panel cleaning brush is the part that holds and operates the brush head. It is generally made of strong and durable materials, we use Aluminum alloy or carbon fiber composite materials. The handle is usually designed for comfort and ease of operation, making it easier for users to use the brush head during the cleaning process.

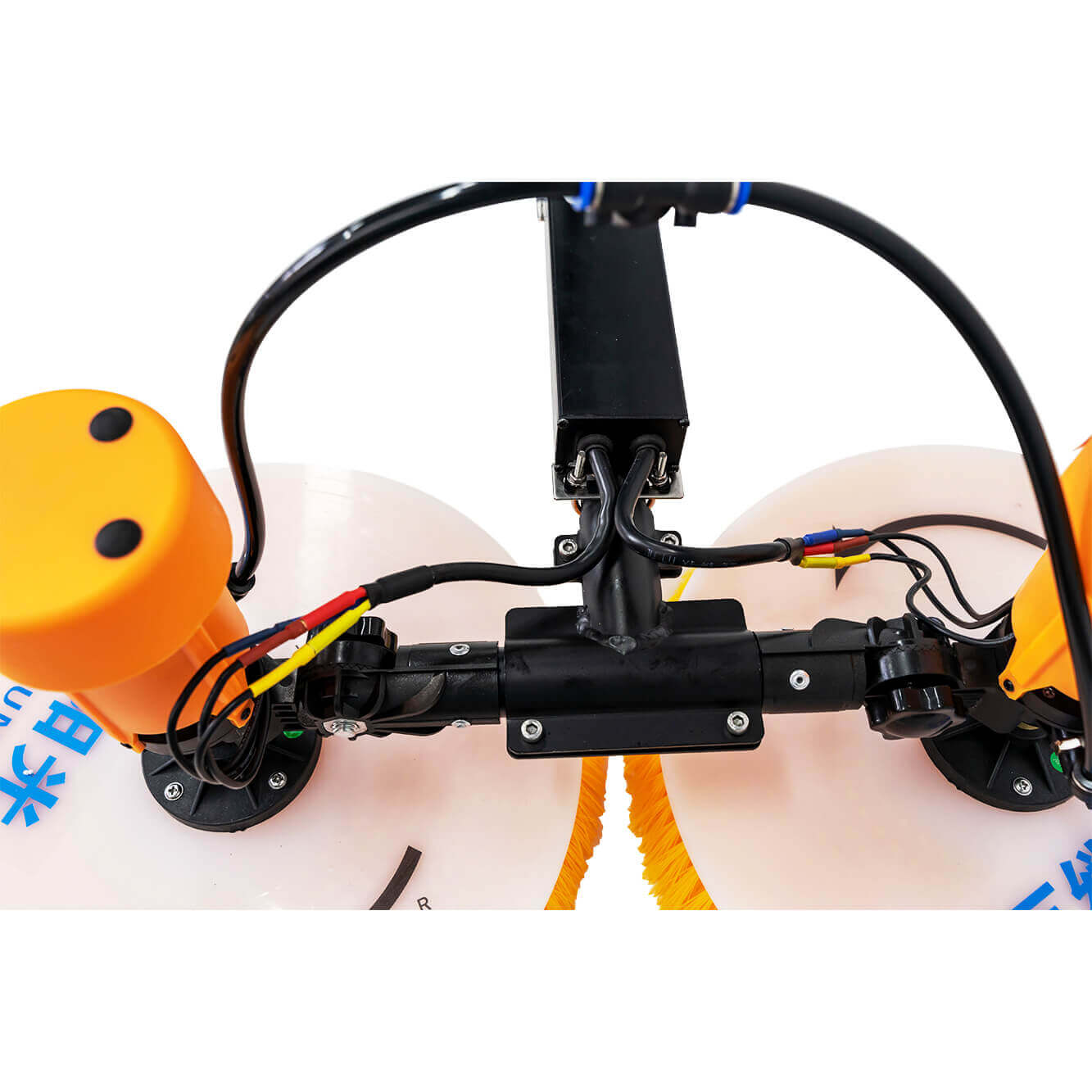

Connectors: Photovoltaic brushes use connectors to connect the brush head to the handle. The connection piece is usually removable to allow brush head replacement or easy repair.
Cleaning brush is usually equipped with a tube with water pipes and wires, which is called a water and electricity integrated pipe. This integrated pipe is designed to provide the water and electricity supply required during the cleaning process.
Integrated water and electricity pipes are designed to simplify the cleaning process and provide a safe and reliable supply of water and electricity. Using this design, operators can more easily control the water flow and brush head movement for efficient panel cleaning. Please be careful to protect the integrated water and electricity pipe when using it to avoid damaging wires or water pipes to ensure safe operation.
Double head solar panel cleaning brush is a tool used to clean solar panels and usually consists of the following main parts:
Brush head: The brush head of the solar panel cleaning brush is the part used to contact and clean the surface. The brush head usually consists of bristles and can be made of different materials, such as soft-bristled brushes, stiff-bristled brushes or rubber brushes. The texture and hardness of the cleaning brush head are designed to adapt to different types of solar panel surface materials to ensure that the cleaning process does not damage the panels.
Handle: The handle of the Double head solar panel cleaning brush is the part that holds and operates the brush head. It is generally made of strong and durable materials, we use Aluminum alloy or carbon fiber composite materials. The handle is usually designed for comfort and ease of operation, making it easier for users to use the brush head during the cleaning process.
Connectors: Photovoltaic brushes use connectors to connect the brush head to the handle. The connection piece is usually removable to allow brush head replacement or easy repair.
Cleaning brush is usually equipped with a tube with water pipes and wires, which is called a water and electricity integrated pipe. This integrated pipe is designed to provide the water and electricity supply required during the cleaning process.
Integrated water and electricity pipes are designed to simplify the cleaning process and provide a safe and reliable supply of water and electricity. Using this design, operators can more easily control the water flow and brush head movement for efficient panel cleaning. Please be careful to protect the integrated water and electricity pipe when using it to avoid damaging wires or water pipes to ensure safe operation.
Mains version | Lithium version | Dual-use version | ||
Motor speed | rpm | 350 | 350 | 350 |
Motor Power | watt | 300 | 300 | 300 |
Motor voltage | volt | 24 | 24 | 24 |
Telescopic rod wall thickness | mm | 1.0 | 1.0 | 1.0 |
Telescopic rod length/no. of | m/knot | 3.5/3 * 5.5/4 * 7.5/4 | 3.5/3 * 5.5/4 * 7.5/4 | 3.5/3 * 5.5/4 * 7.5/4 |
Maximum diameter of telescopic tube | mm | 35/40/40 | 35/40/40 | 35/40/40 |
Wire/water pipe length | m | 16/20 | 8/20 | 16/20 |
Power supply | — | 220V main power | Lithium battery pack | 220V main power/Lithium battery pack |
Lithium battery voltage/capacity | Volts/Ah | 24/26 | 24/26 | 24/26 |
Lithium battery current | Amp | 10 | 10 | 10 |
Usage time/battery charge | Hour | — | 4-5/ 10-12 | 4-5/ 10-12 |
Bristle material | — | New material nylon yarn | New material nylon yarn | New material nylon yarn |
Telescopic pole material | — | Aluminum alloy/carbon fiber | Aluminum alloy | Aluminum alloy |
Cleaning width | centimeter | 32/65*50/100 | 32/65*50/100 | 32/65*50/100 |
Mains version | Lithium version | Dual-use version | ||
Motor speed | rpm | 350 | 350 | 350 |
Motor Power | watt | 300 | 300 | 300 |
Motor voltage | volt | 24 | 24 | 24 |
Telescopic rod wall thickness | mm | 1.0 | 1.0 | 1.0 |
Telescopic rod length/no. of | m/knot | 3.5/3 * 5.5/4 * 7.5/4 | 3.5/3 * 5.5/4 * 7.5/4 | 3.5/3 * 5.5/4 * 7.5/4 |
Maximum diameter of telescopic tube | mm | 35/40/40 | 35/40/40 | 35/40/40 |
Wire/water pipe length | m | 16/20 | 8/20 | 16/20 |
Power supply | — | 220V main power | Lithium battery pack | 220V main power/Lithium battery pack |
Lithium battery voltage/capacity | Volts/Ah | 24/26 | 24/26 | 24/26 |
Lithium battery current | Amp | 10 | 10 | 10 |
Usage time/battery charge | Hour | — | 4-5/ 10-12 | 4-5/ 10-12 |
Bristle material | — | New material nylon yarn | New material nylon yarn | New material nylon yarn |
Telescopic pole material | — | Aluminum alloy/carbon fiber | Aluminum alloy | Aluminum alloy |
Cleaning width | centimeter | 32/65*50/100 | 32/65*50/100 | 32/65*50/100 |
