Portable Rotatory Washing Brush for Solar Panel Cleaning

Availability:
Quantity:

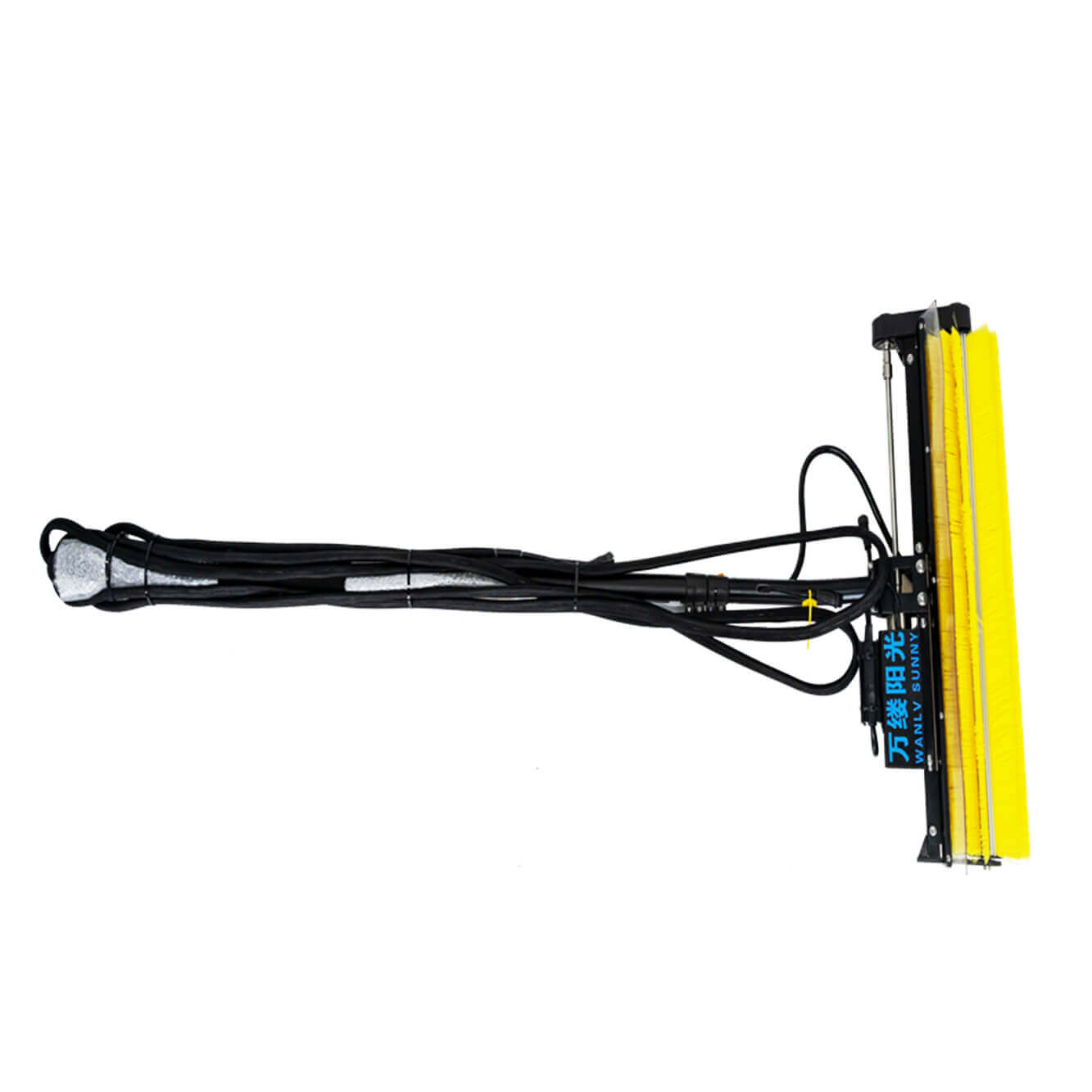

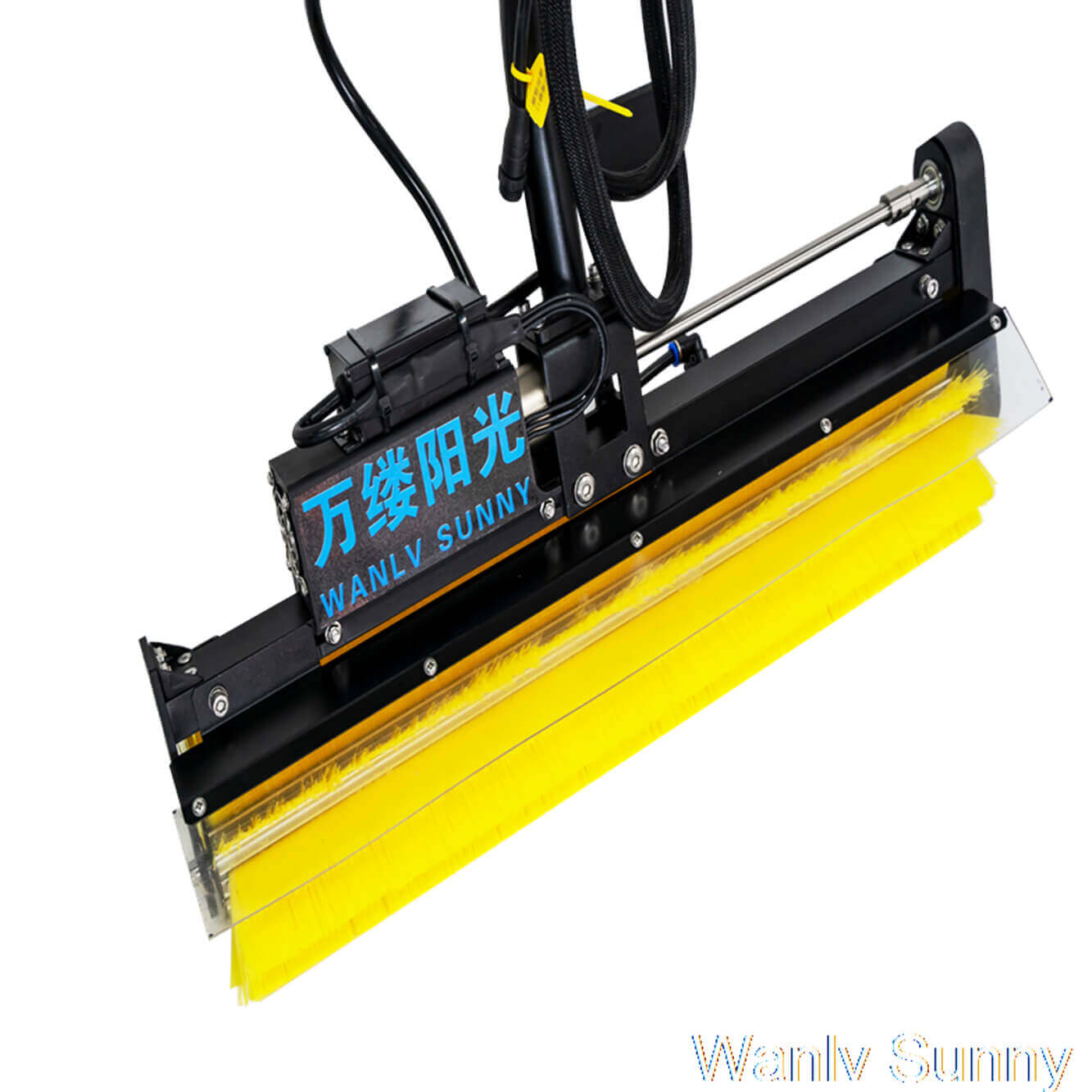

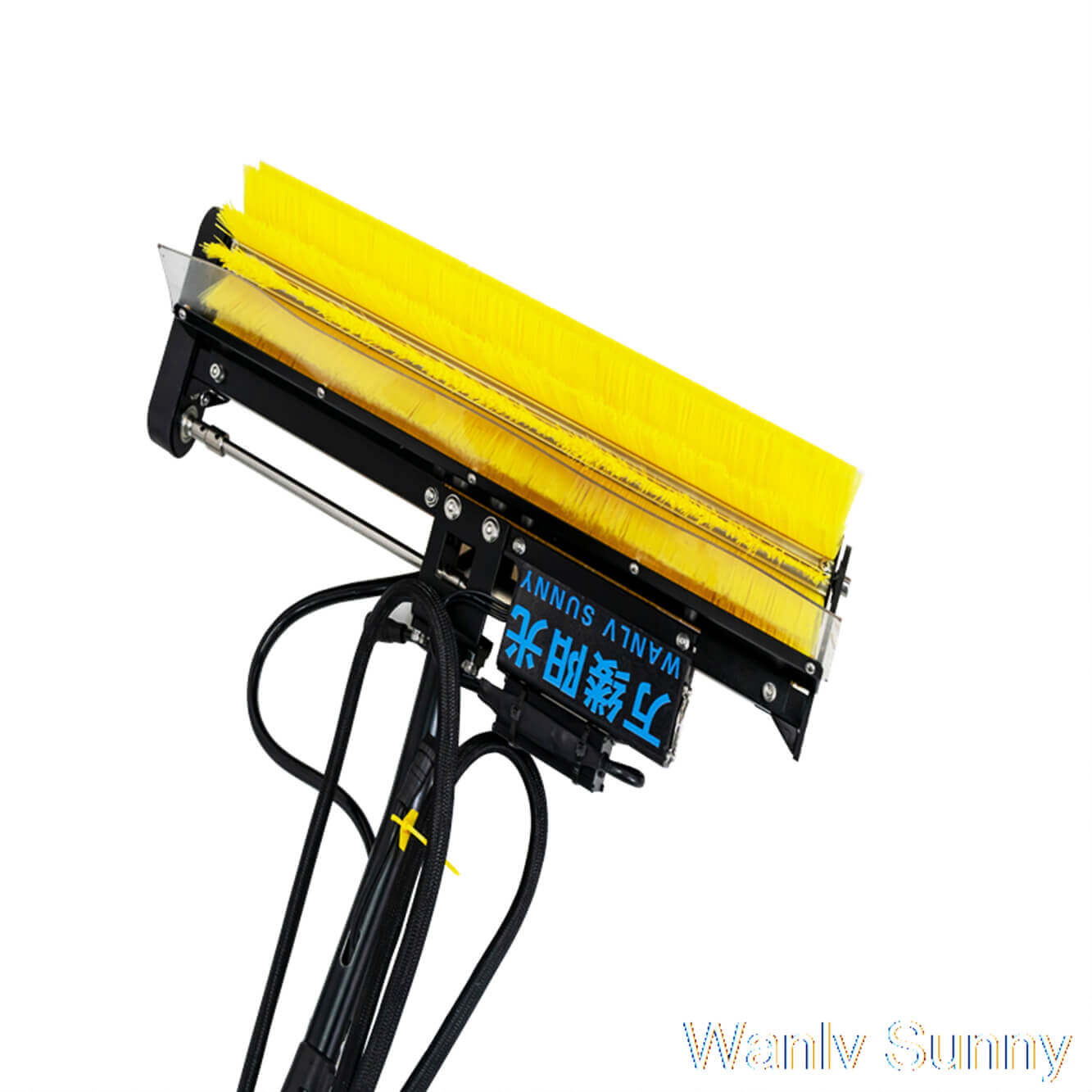

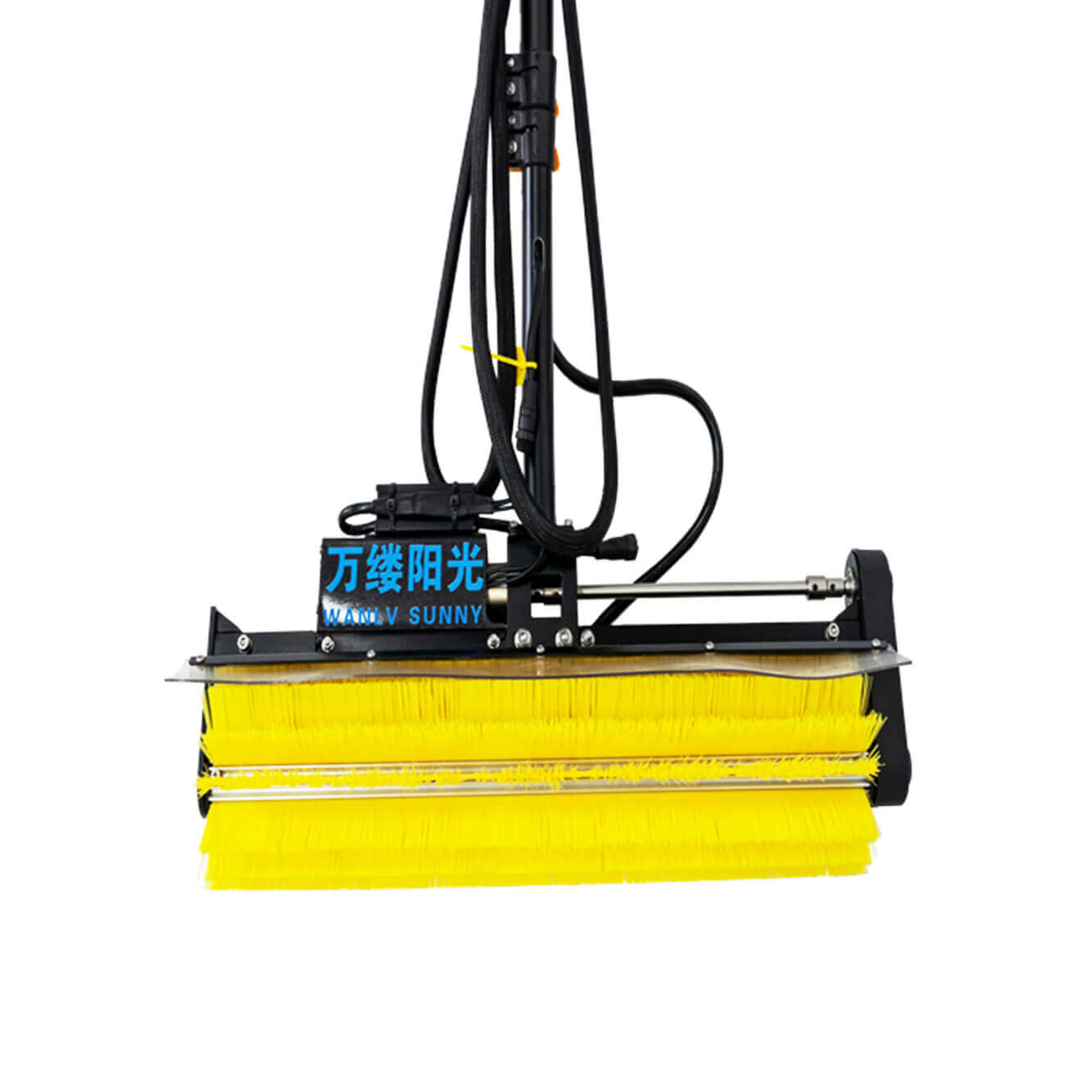

Portable Rotatory Washing Brush for Solar Panel Cleaning


Model: WLS-5-1-3YL

Power supply: Main electrical power

Length of the telescopic pole: 3.5meter

Material of pole: Aluminum alloy

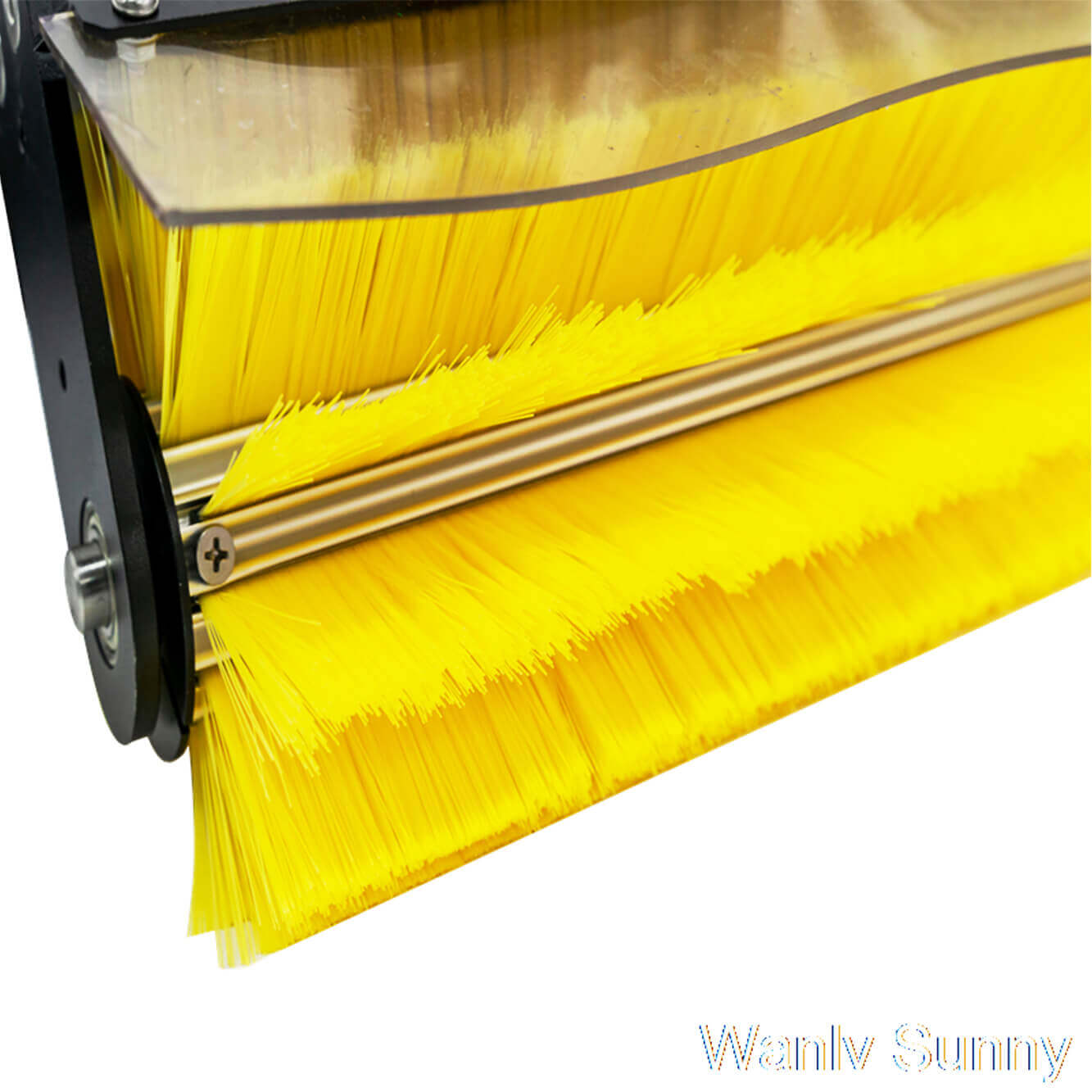

Photovoltaic brushes can be designed into spiral brush rollers, transplanted brush rollers, disc brushes and other shapes according to the cleaning equipment. Portable Rotatory Washing Brush  uses a photovoltaic panel roller brush, which is a spiral brush roller or a hair-planted brush roller.


When it comes to the selection of brush filaments, pure nylon filaments are generally chosen. Pure nylon filaments are softer in texture, have good flexibility and strong resilience, and will not scratch expensive photovoltaic panel equipment during the cleaning process. High-quality photovoltaic brushes not only effectively save labor costs, are time-saving and efficient, and provide all-round cleaning.

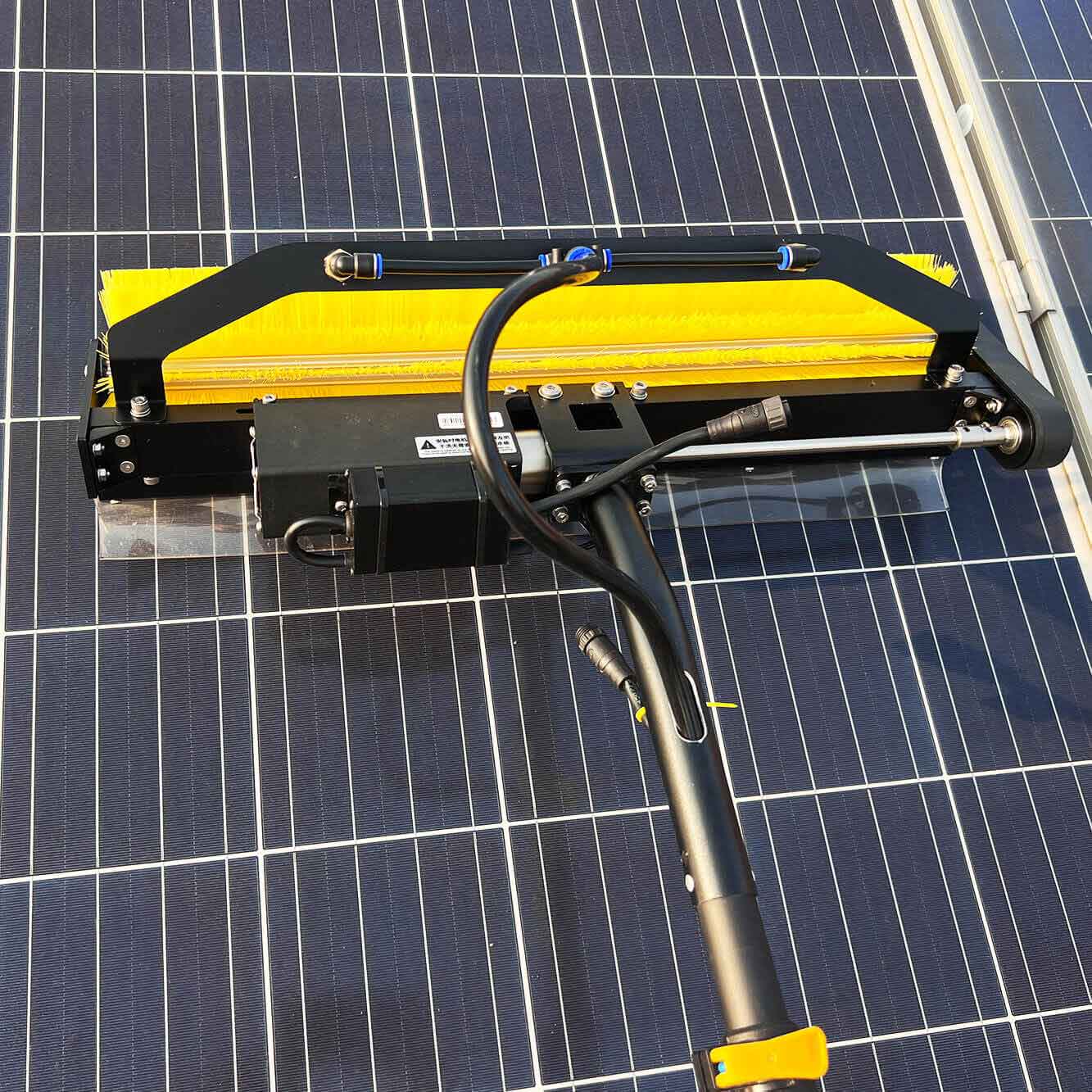

Portable Rotatory Washing Brush is suitable for cleaning various photovoltaic panels within 10 meters. Its cleaning workload for 8 hours is 0.8 MW a day, using a pole head goose neck design, which is more labor-saving than a straight pole.


The weight of the Portable Rotatory Washing Brush is about 6kg. The material of pole is aluminum alloy,

compared with other metal materials, it is less dense and lighter in weight.It is easier to use and requires less work.


We provide high quality accessories and consumable parts, the brush could be replaced easily and at a very low cost.


The mains version has stable and long-lasting power supply equipped with an 8-meter extended power cord, total length is 16 meters


Configuration:

Accessories package: 15 m water pipe + valve

Power converter: 24V

Extension 8 meter power cord

Data sheet of the Portable Rotatory Washing Brush for Solar Panel Cleaning

Power version


Main power version

Lithium Power version

Dual version

Motor speed

rpm

700

700

700

Motor Power

watt

150

150

150

Motor voltage

volt

24

24

24

Telescopic rod wall thickness

mm

1

1

1

Telescopic rod length/No. of sections

m/knot

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

Maximum diameter of telescopic tube

mm

35/40/40

35/40/40

35/40/40

Wire/water pipe length

meter

16/20

8/20

16/20

Power supply

220V mains power

Lithium battery pack

220V mains power and
lithium battery pack

Lithium battery voltage/capacity

Volts/Ah

24/26

24/26

24/26

Lithium battery current

Ampere

10

10

10

Usage time/battery charge

Hour

4-5/ 8-10

4-5/8-10

Bristle material

New nylon yarn

New nylon yarn

New nylon yarn

Telescopic pole material

Aluminum alloy
/carbon fiber

Aluminum alloy
/carbon fiber

Aluminum alloy
/carbon fiber

Cleaning width

cm

60

60

60
