Portable Rolling Washing Brush for Solar Panel Cleaning

Availability:
Quantity:

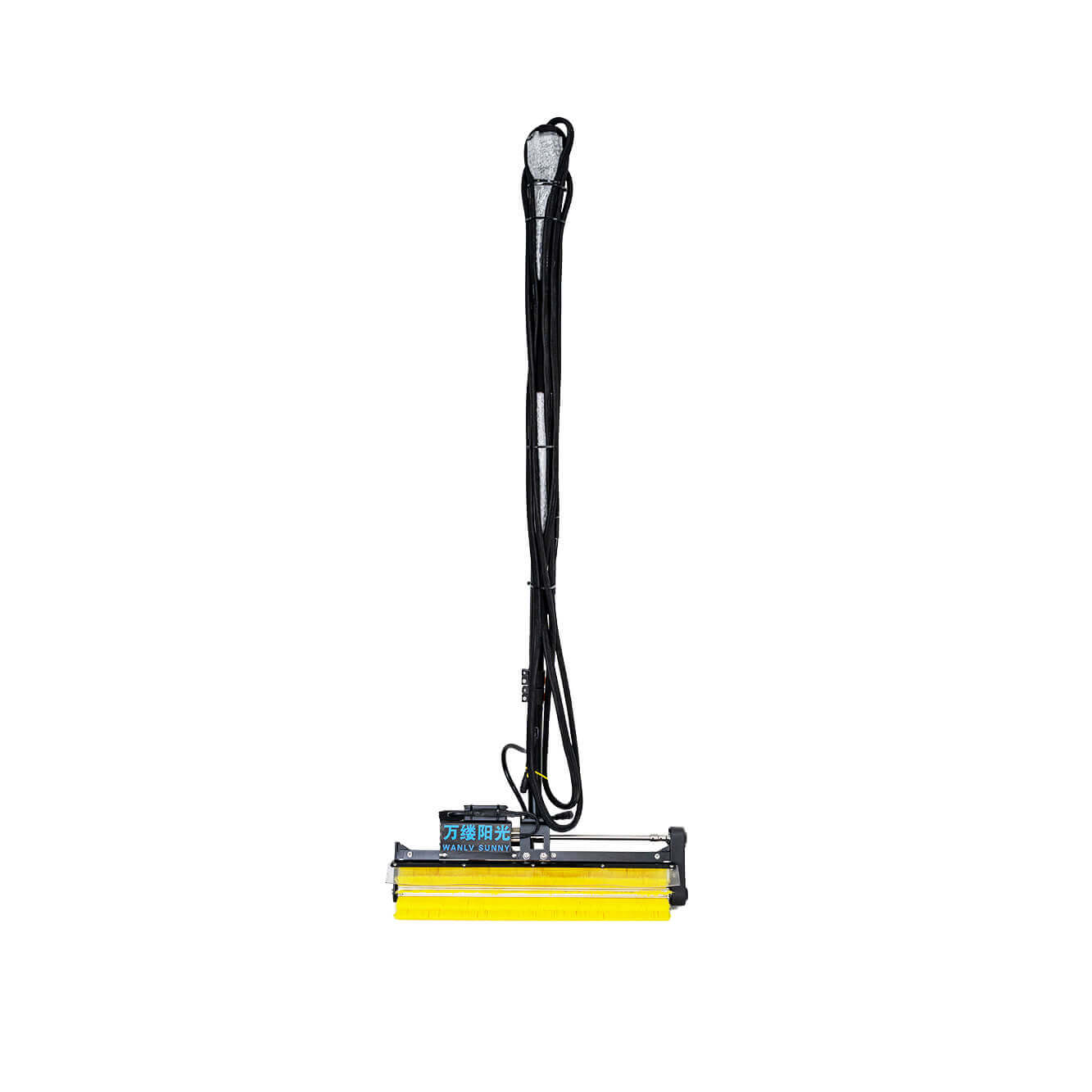

Portable Rolling Washing Brush for Solar Panel Cleaning


Model: WLS-4-1-5YL

Power supply: Main electrical power

Length of the telescopic pole: 5.5meter

Material of pole: Aluminum alloy

Motor Type:Brushed Motor


Portable Rotatory Washing Brush is suitable for cleaning various photovoltaic panels within 10 meters.

Workload: 0.8 MW for 8 hours


Component:

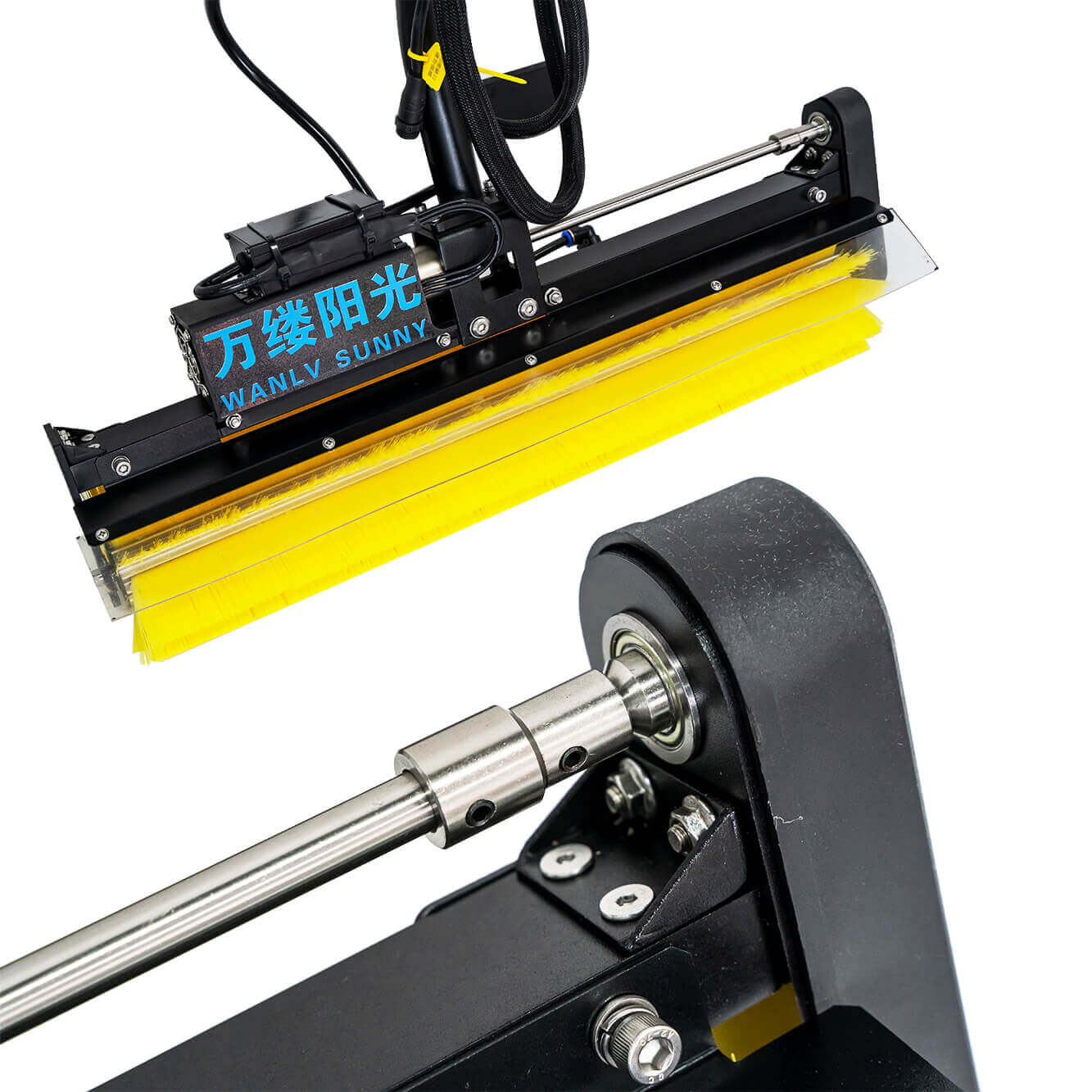

Rolling brush mechanism,

Curved sleeve rod,

Connecting rod,

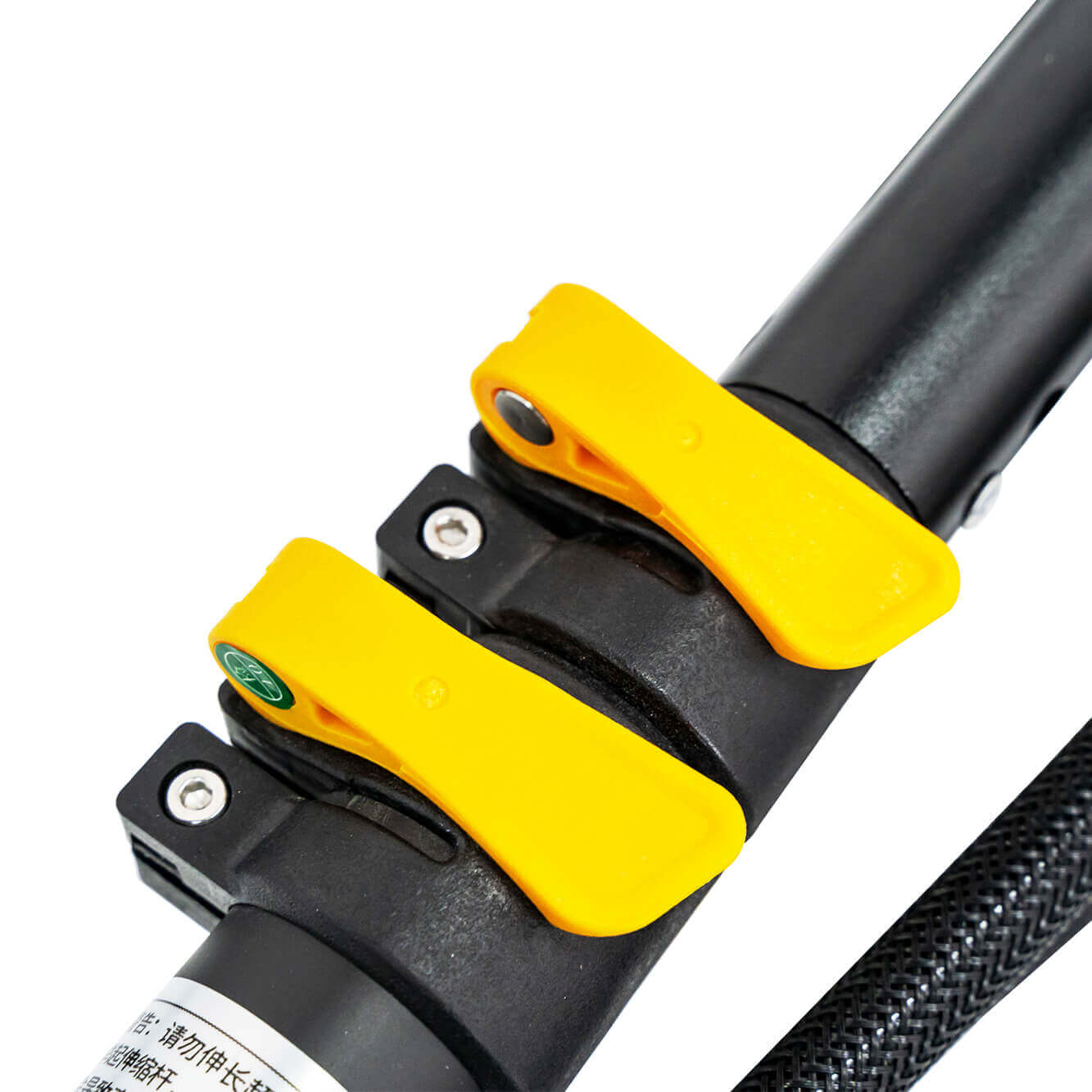

Fixed snap button,

Rolling brush handle

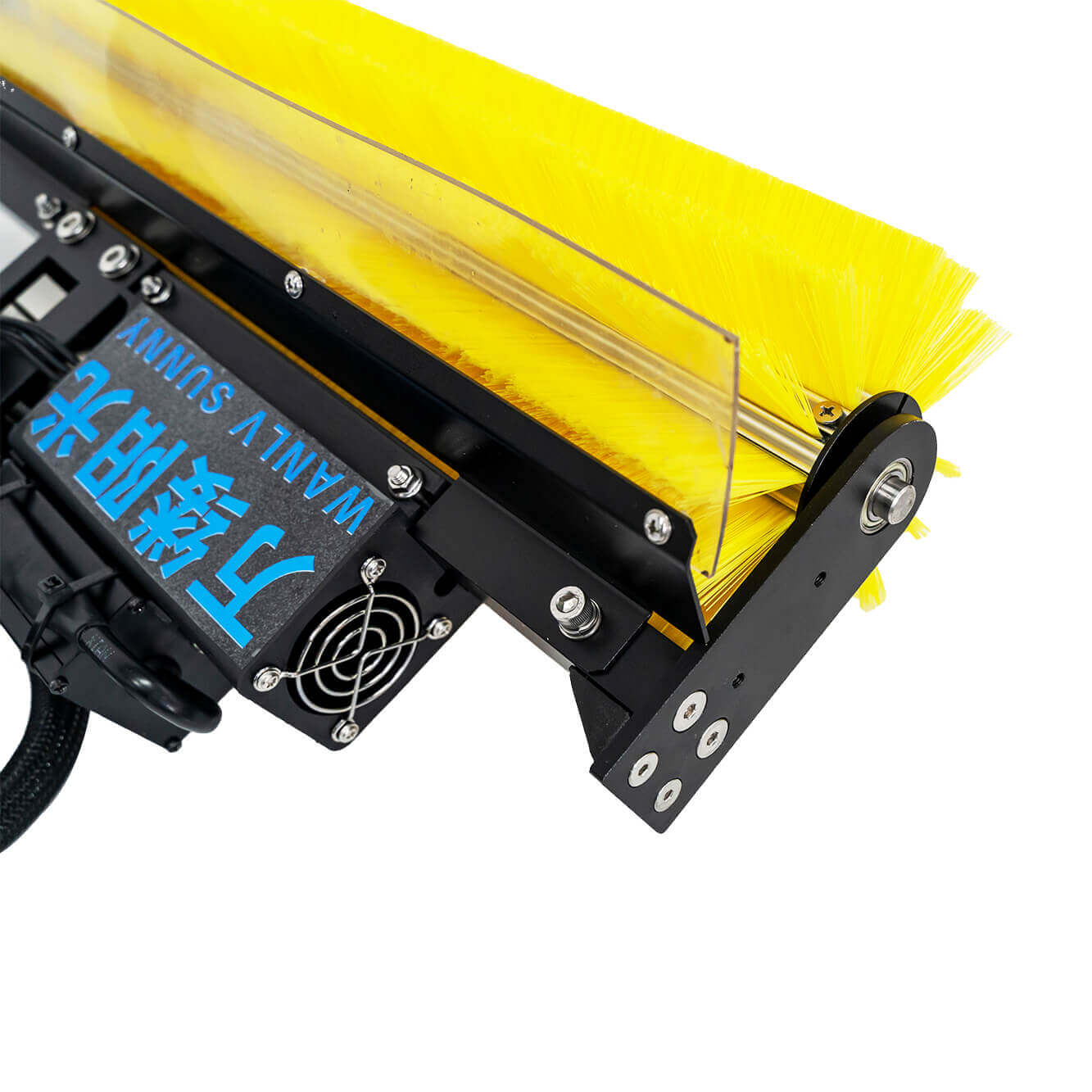

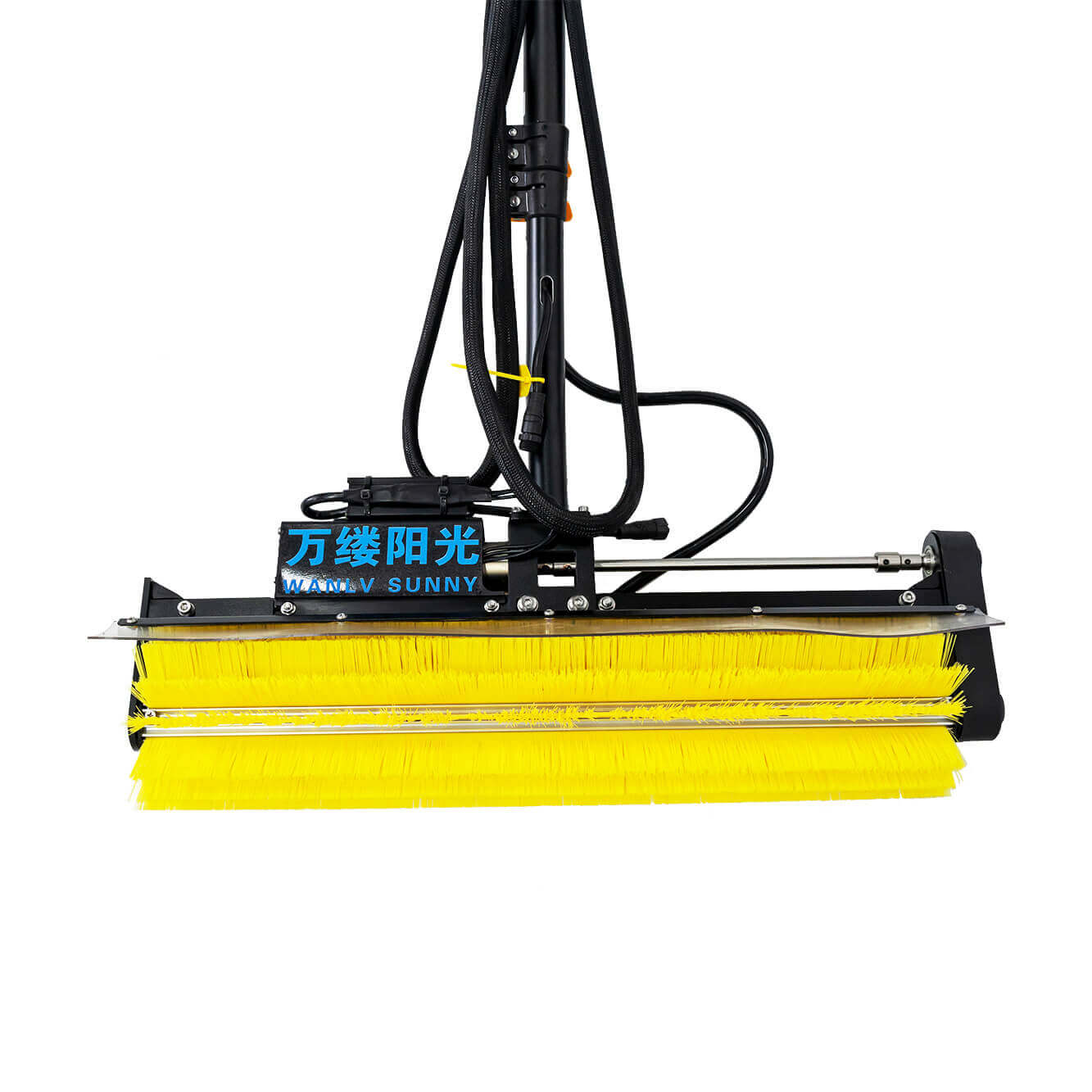

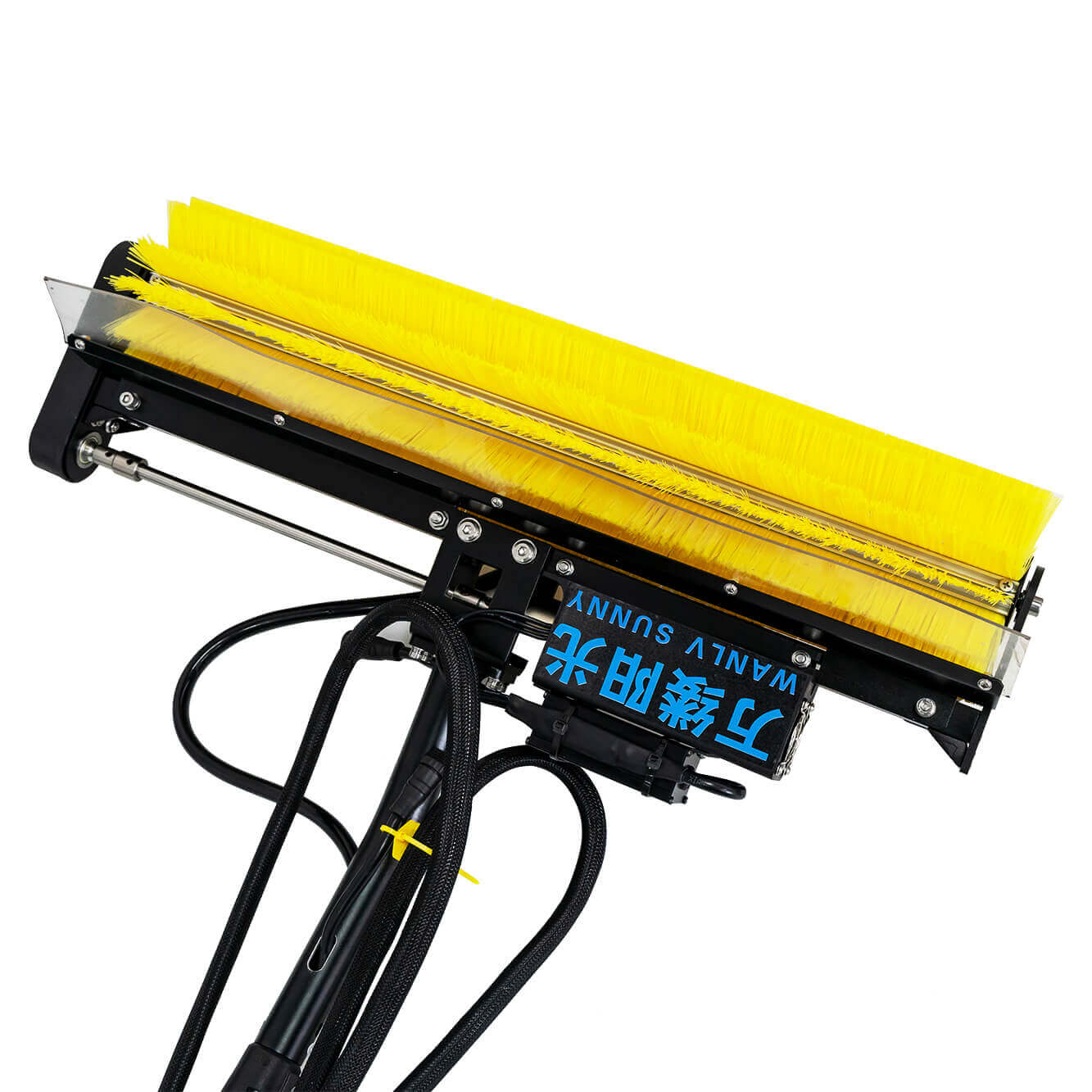

Brush head


The special design---goose neck design, which is more labor-saving than a straight pole.


The weight of the Portable Rotatory Washing Brush is about 6kg

The material of pole is aluminum alloy compared with other metal materials, it is less dense and lighter in weight.

It is easier to use and requires less work.

The ultra-light weight design can be used by the elderly and women to save effort and time.


We provide high quality accessories and consumable parts, the brush could be replaced easily.



Configuration:

Accessories package: 15 m water pipe + valve

Power converter: 24V

Extension 8 meter power cord

Data sheet of the Portable Rotatory Washing Brush for Solar Panel Cleaning

Power version


Main power version

Lithium Power version

Dual version

Motor speed

rpm

700

700

700

Motor Power

watt

150

150

150

Motor voltage

volt

24

24

24

Telescopic rod wall thickness

mm

1

1

1

Telescopic rod length/No. of sections

m/knot

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

3.5/3 * 5.5/4 * 7.5/4

Maximum diameter of telescopic tube

mm

35/40/40

35/40/40

35/40/40

Wire/water pipe length

meter

16/20

8/20

16/20

Power supply

220V mains power

Lithium battery pack

220V mains power and
lithium battery pack

Lithium battery voltage/capacity

Volts/Ah

24/26

24/26

24/26

Lithium battery current

Ampere

10

10

10

Usage time/battery charge

Hour

4-5/ 8-10

4-5/8-10

Bristle material

New nylon yarn

New nylon yarn

New nylon yarn

Telescopic pole material

Aluminum alloy
/carbon fiber

Aluminum alloy
/carbon fiber

Aluminum alloy
/carbon fiber

Cleaning width

cm

60

60

60
